drylin W drylin W
®
®
®
®
hybrid roller drylin W hybrid roller bearings | Product range New drylin W hybrid roller bearings | Product range New hybrid roller
bearings bearings

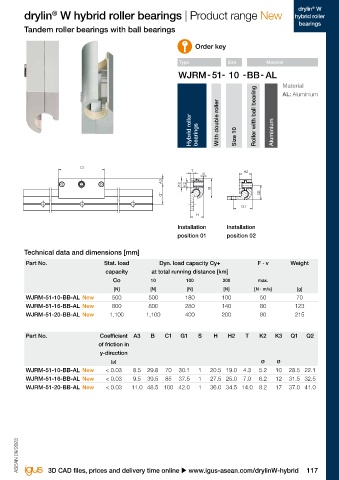

Hybrid roller bearings with two rollers Tandem roller bearings with ball bearings
Order key Order key

Type Size Material Type Size Material

Material Material
AL: Aluminium AL: Aluminium

Hybrid roller bearings With double roller Size 10 Aluminium Hybrid roller bearings With double roller Size 10 Roller with ball bearing Aluminium

C1 C1
T H2 T H2
S S
A3 A3
K3 K2 K3 K2
B B
G1 Q2 G1 Q2

Q1 Q1
H H
Einbaulage 01 Einbaulage 02 Einbaulage 01 Einbaulage 02
Installation Installation Installation Installation
position 01 position 02 position 01 position 02

Technical data and dimensions [mm] Technical data and dimensions [mm]

Part No. Stat. load Dyn. load capacity Cy+ F · v Weight Part No. Stat. load Dyn. load capacity Cy+ F · v Weight
capacity at total running distance [km] capacity at total running distance [km]
Co 10 100 200 max. Co 10 100 200 max.
[N] [N] [N] [N] [N · m/s] [g] [N] [N] [N] [N] [N · m/s] [g]
WJRM-51-10-AL New 500 500 180 100 50 70 WJRM-51-10-BB-AL New 500 500 180 100 50 70
WJRM-51-16-AL New 800 800 280 140 80 123 WJRM-51-16-BB-AL New 800 800 280 140 80 123
WJRM-51-20-AL New 1,100 1,100 400 200 80 215 WJRM-51-20-BB-AL New 1,100 1,100 400 200 80 215

Part No. Coefficient A3 B C1 G1 S H H2 T K2 K3 Q1 Q2 Part No. Coefficient A3 B C1 G1 S H H2 T K2 K3 Q1 Q2
of friction in of friction in
z-direction y-direction
[µ] Ø Ø [µ] Ø Ø
WJRM-51-10-AL New < 0.10 8.5 29.8 70 30.1 1 20.5 19.0 4.3 5.2 10 28.5 22.1 WJRM-51-10-BB-AL New < 0.03 8.5 29.8 70 30.1 1 20.5 19.0 4.3 5.2 10 28.5 22.1
WJRM-51-16-AL New < 0.10 9.5 39.5 85 37.5 1 27.5 25.0 7.0 6.2 12 31.5 32.5 WJRM-51-16-BB-AL New < 0.03 9.5 39.5 85 37.5 1 27.5 25.0 7.0 6.2 12 31.5 32.5
WJRM-51-20-AL New < 0.10 11.0 48.5 100 42.0 1 36.0 34.5 14.0 8.2 17 37.0 41.0 WJRM-51-20-BB-AL New < 0.03 11.0 48.5 100 42.0 1 36.0 34.5 14.0 8.2 17 37.0 41.0

ASEAN 09/2023 ASEAN 09/2023

116 Online tools and more information u www.igus-asean.com/drylinW-hybrid 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinW-hybrid 117
