drylin W
®
®
hybrid roller drylin W hybrid roller bearings | Product range
bearings

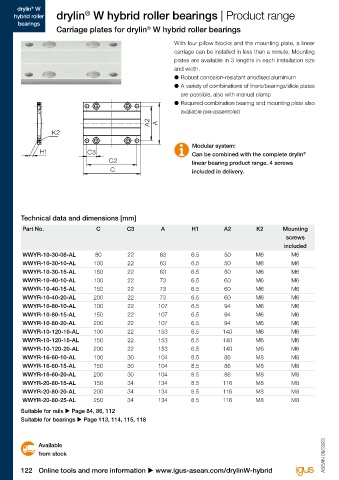

Carriage plates for drylin W hybrid roller bearings
®
With four pillow blocks and the mounting plate, a linear
carriage can be installed in less than a minute. Mounting
plates are available in 3 lengths in each installation size
and width.
● Robust corrosion-resistant anodised aluminium
● A variety of combinations of liners/bearings/slide plates
are possible, also with manual clamp
● Required combination bearing and mounting plate also
available pre-assembled
A2 A
K2

Modular system:
H1 C3 Can be combined with the complete drylin
®
C2 linear bearing product range. 4 screws
C included in delivery.

Technical data and dimensions [mm]
Part No. C C3 A H1 A2 K2 Mounting
screws
included
WWYR-10-30-08-AL 80 22 63 6.5 50 M6 M6
WWYR-10-30-10-AL 100 22 63 6.5 50 M6 M6
WWYR-10-30-15-AL 150 22 63 6.5 50 M6 M6
WWYR-10-40-10-AL 100 22 73 6.5 60 M6 M6
®
WWYR-10-40-15-AL 150 22 73 6.5 60 M6 M6 drylin linear technology -
WWYR-10-40-20-AL 200 22 73 6.5 60 M6 M6
WWYR-10-80-10-AL 100 22 107 6.5 94 M6 M6
WWYR-10-80-15-AL 150 22 107 6.5 94 M6 M6 accessories
WWYR-10-80-20-AL 200 22 107 6.5 94 M6 M6
WWYR-10-120-10-AL 100 22 153 6.5 140 M6 M6
WWYR-10-120-15-AL 150 22 153 6.5 140 M6 M6 Manual clamps
WWYR-10-120-20-AL 200 22 153 6.5 140 M6 M6
WWYR-16-60-10-AL 100 30 104 8.5 86 M8 M8 Liners
WWYR-16-60-15-AL 150 30 104 8.5 86 M8 M8
WWYR-16-60-20-AL 200 30 104 8.5 86 M8 M8 End caps
WWYR-20-80-15-AL 150 34 134 8.5 116 M8 M8
WWYR-20-80-20-AL 200 34 134 8.5 116 M8 M8 Slot nuts
WWYR-20-80-25-AL 250 34 134 8.5 116 M8 M8
Suitable for rails u Page 84, 86, 112 Clamps
Suitable for bearings u Page 113, 114, 115, 118

Available
from stock ASEAN 09/2023 ASEAN 09/2023

122 Online tools and more information u www.igus-asean.com/drylinW-hybrid
