drylin W drylin W
®
®
®
®

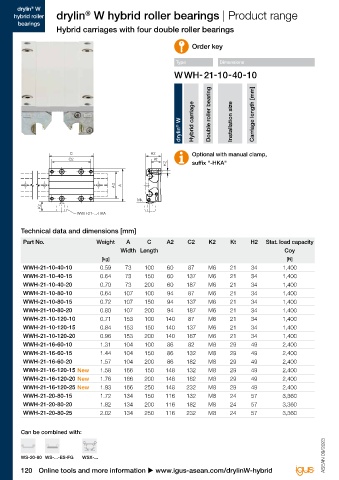

hybrid roller drylin W hybrid roller bearings | Product range drylin W hybrid roller bearings | Product range hybrid roller
bearings bearings
Hybrid carriages with four double roller bearings Hybrid carriages with four single roller bearings for horizontal installation
Order key Order key

Type Dimensions Type Dimensions

drylin ® W Hybrid carriage Double roller bearing Installation size Carriage length [mm] drylin ® W Hybrid carriage Installation size Carriage length [mm]

Optional with manual clamp,
suffix "-HKA" K2

A2 A C C2

C2 H2 K2
C
Technical data and dimensions [mm]
Part No. Weight A C A2 C2 K2 Kt H2 Stat. load capacity
Width Length Coy
H2
[kg] [N] Technical data and dimensions [mm]
WWH-21-10-40-10 0.59 73 100 60 87 M6 21 34 1,400 Part No. Weight A A2 C C2 K2 H2 Static load capacity A2
WWH-21-10-40-15 0.64 73 150 60 137 M6 21 34 1,400 Coy Coz Mox Moy A Moz
WWH-21-10-40-20 0.70 73 200 60 187 M6 21 34 1,400 [kg] ±0.17 [N] [N] [Nm] [Nm] [Nm]
WWH-21-10-80-10 0.64 107 100 94 87 M6 21 34 1,400 WWH-10-40-10 0.35 58 40 100 80 M5 34 1,000 1,000 20 16 32
WWH-21-10-80-15 0.72 107 150 94 137 M6 21 34 1,400 WWH-16-60-15 0.96 84 60 150 120 M6 46 1,600 1,600 45 38 77
WWH-21-10-80-20 0.80 107 200 94 187 M6 21 34 1,400 WWH-20-80-25 1.78 114 90 250 220 M6 55 2,200 2,200 90 435 435
WWH-21-10-120-10 0.71 153 100 140 87 M6 21 34 1,400
WWH-21-10-120-15 0.84 153 150 140 137 M6 21 34 1,400
WWH-21-10-120-20 0.96 153 200 140 187 M6 21 34 1,400
WWH-21-16-60-10 1.31 104 100 86 82 M8 29 49 2,400
WWH-21-16-60-15 1.44 104 150 86 132 M8 29 49 2,400
WWH-21-16-60-20 1.57 104 200 86 182 M8 29 49 2,400
WWH-21-16-120-15 New 1.58 166 150 148 132 M8 29 49 2,400
WWH-21-16-120-20 New 1.76 166 200 148 182 M8 29 49 2,400
WWH-21-16-120-25 New 1.93 166 250 148 232 M8 29 49 2,400
WWH-21-20-80-15 1.72 134 150 116 132 M8 24 57 3,360
WWH-21-20-80-20 1.82 134 200 116 182 M8 24 57 3,360
WWH-21-20-80-25 2.02 134 250 116 232 M8 24 57 3,360

Can be combined with: Can be combined with:
ASEAN 09/2023 ASEAN 09/2023

WS-20-80 WS-...-ES-FG WSX-... WS-... WS-...-ES-FG WSX-...
120 Online tools and more information u www.igus-asean.com/drylinW-hybrid 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinW-hybrid 121
