drylin W Mk drylin W
®
®
®
®
profile drylin W profile guides | Product range drylin W profile guides | Product range profile
guides Dk guides

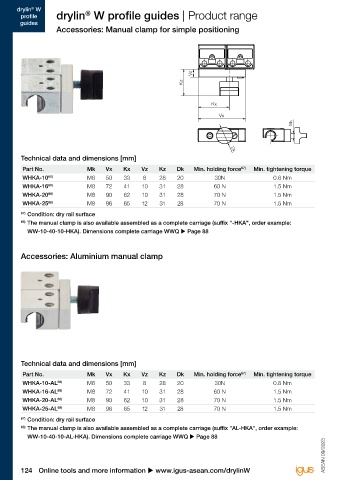

Accessories: Manual clamp for simple positioning Accessories: Manual clamp for square rails

Vz
Vz
Kz
K z

Kx
K x Vx

Vx Mk
Mk

Technical data and dimensions [mm] Dk Technical data and dimensions [mm] Dk
Part No. Mk Vx Kx Vz Kz Dk Min. holding force 67) Min. tightening torque Part No. Mk Vx Kx Vz Kz Dk Min. holding force 67) Min. tightening torque
WHKA-10 66) M6 50 33 8 28 20 30N 0.8 Nm WHKAQ-06 133) 137) M6 34.5 21.5 8 28 20 30N 0.8 Nm
WHKA-16 66) M8 72 41 10 31 28 60 N 1.5 Nm WHKAQ-10 137) M6 50 33 8 28 20 30N 0.8 Nm
WHKA-20 66) M8 90 62 10 31 28 K z Vz 70 N 1.5 Nm WHKAQ-16 137) M8 72 41 10 31 28 60 N 1.5 Nm
WHKA-25 66) M8 96 65 12 31 28 70 N 1.5 Nm WHKAQ-20 137) M8 90 62 10 31 28 70 N 1.5 Nm
67) Condition: dry rail surface K x 67) Condition: dry rail surface
66) The manual clamp is also available assembled as a complete carriage (suffix "-HKA", order example: 133) Aluminium version available, suffix "-AL" Mk
Vx
WW-10-40-10-HKA). Dimensions complete carriage WWQ u Page 88 137) The manual clamp is also available assembled as a complete carriage (suffix "-HKAQ", order example:
WW-06-30-06-HKAQ). Dimensions complete carriage WWQ u Page 82
Dk
Accessories: Aluminium manual clamp Accessories: Manual clamp for higher holding forces

Kz
Vz

Kx

Vx
Mk Mk

Dk Dk
Technical data and dimensions [mm] Technical data and dimensions [mm]
Part No. Mk Vx Kx Vz Kz Dk Min. holding force 67) Min. tightening torque Part No. Mk Vx Kx Vz Kz Dk Min. holding force 67) Min. tightening torque
WHKA-10-AL 68) M6 50 33 8 28 20 30N 0.8 Nm WHKD-1010 69) M6 100 45 40 10 40 70 N 2.5 Nm
WHKA-16-AL 68) M8 72 41 10 31 28 60 N 1.5 Nm WHKD-1015 69) Kz M6 150 95 40 10 40 70 N Kz 2.5 Nm
WHKA-20-AL 68) M8 90 62 10 31 28 70 N 1.5 Nm WHKD-1615 69) Vz M8 150 81 40 12 40 90 N Vz 3.5Nm
WHKA-25-AL 68) M8 96 65 12 31 28 70 N 1.5 Nm WHKD-1620 69) M8 200 131 40 12 40 90 N 3.5Nm
67) Condition: dry rail surface WHKD-2015 69) M8 Kx 150 63 40 12 40 90 N Kx 3.5Nm
68) The manual clamp is also available assembled as a complete carriage (suffix "AL-HKA", order example: WHKD-2020 69) M8 200 113 40 12 40 90 N 3.5Nm
Vx
Vx
WW-10-40-10-AL-HKA). Dimensions complete carriage WWQ u Page 88 67) Condition: dry rail surface
ASEAN 09/2023 ASEAN 09/2023 WW-10-40-10-HKD). Dimensions complete carriage WWQ u Page 88
69)
The manual clamp is also available assembled as a complete carriage (suffix "-HKD", order example:

124 Online tools and more information u www.igus-asean.com/drylinW 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinW 125
