drylin N drylin N
®
®
®
®
low-profile drylin N low-profile linear guides | Product range drylin N low-profile linear guides | Product range low-profile
linear linear
guides guides

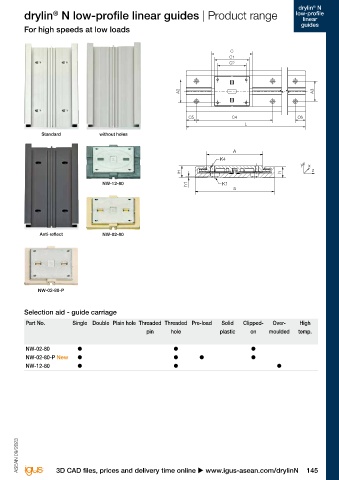

Guide rails and carriages - installation size 80 For high speeds at low loads C
C1
C2
Order key C
C1
C2
Type Size Options
A2 A3
A2 C4 C6 A3

C5
drylin ® N Guide carriages Type of carriage Rail width Pre-load Floating bearing in y-direction C5 L C4 L C6

Complete system Standard without holes

A A
Type of carriage: Floating bearing
See selection aid LLY: y-direction K4 K4 y x
Options: LLZ: z-direction H H h h z
P: Pre-load LLYZ: yz-direction h1 K1
NW-12-80 h1 K1 a
a

Guide rail (standard/without holes/AR anti-reflect) - dimensions [mm]

Part No. L a C4 A3 C5 C6 h h1 K1 73) ly lz Weight
max. min. max. [mm ] [mm ] [g/m]
4
4
NS-01-80- 72) 4,000 80 150 40 25 99.5 11 1.5 Ø4.5 271,200 2,900 1,140 Anti-reflect NW-02-80
NS-01-80-UNGEBOHRT- 72) 4,000 80 – – – – 11 1.5 – 271,200 2,900 1,140
NS-01-80-AR- 72) 4,000 80 150 40 25 99.5 11 1.5 Ø4.5 271,200 2,900 1,140

Guide carriage - dimensions [mm]

Part No. H A C C1 C2 A2 K4 74) Weight
±0.35 [g] NW-02-80-P
NW-02-80 12.0 57.0 80 68 56 45 M4 100.0
NW-02-80-P New 12.0 57.0 80 68 56 45 M4 100.0
NW-12-80 12.0 57.0 83 68 56 45 M4 146.3 Selection aid - guide carriage

72) Please give the required length in mm, symmetrical standard hole pattern C5=C6 Part No. Single Double Plain hole Threaded Threaded Pre-load Solid Clipped- Over- High
73) For cap screw with low head (e.g. DIN 7984, DIN 6912, DIN 84, EN ISO 1707) pin hole plastic on moulded temp.
74) Metal thread
NW-02-80 • • •
NW-02-80-P New • • • •
NW-12-80 • • •

All elements can be ordered individually or as assembled systems
NS-01-80-1500: Guide rail, size 80, 1,500mm length
NW-02-80-LLY: Guide carriage, clip-on, installation size 80, floating bearing in y-direction,
NK-02-80-02-500-LLY: Complete system with two clipped-on guide carriages with threaded pins, installation
size 80, floating bearing in y-direction and 500mm guide rails with standard holes
ASEAN 09/2023 ASEAN 09/2023

144 Online tools and more information u www.igus-asean.com/drylinN 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinN 145
