P. 152

drylin  N                                                                                                                                                                                                                 drylin  N
            ®
                                                                                                                                                                                                                                      ®
                               ®
                                                                                                                                           ®
      low-profile    drylin  N low-profile linear guides | Product range                                                         drylin  N low-profile linear guides | Product range                                            low-profile
         linear                                                                                                                                                                                                                   linear
        guides                                                                                                                                                                                                                    guides

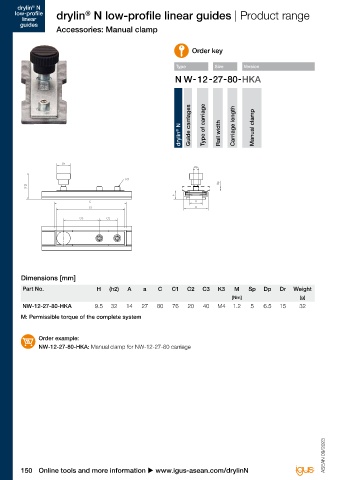

                     Accessories: Manual clamp                                                                                   Accessories: End caps
                                                                    Order key                                                                                                                Order key


                                                               Type         Size       Version                                                                                         Type       Size











                                                                drylin ®  N  Guide carriages  Type of carriage  Rail width  Carriage length  Manual clamp                                drylin ®  N -   end caps  Push-fit  Rail width






                       Dr
                                                                     Dp

                                             K3
                                                                              Sp
          (h2)
                                                              H
                                C                                     A
                                C1                                    a
                             C3       C2











        Dimensions [mm]                                                                                                          Dimensions [mm]
         Part No.                  H   (h2)   A    a     C   C1    C2   C3    K3   M    Sp    Dp   Dr   Weight                   Part No.                        S                           T                         For rail

                                                                                  [Nm]                    [g]                    NSKB-17                        1.5                          7                       NS-01-17
         NW-12-27-80-HKA          9.5   32   14    27   80    76   20   40   M4    1.2   5    6.5  15     32                     NSKB-27                        2.0                          8                       NS-01-27

        M: Permissible torque of the complete system                                                                             NSK-40                         1.5                          8                       NS-01-40
                                                                                                                                 NSKB-80                        2.0                          17                      NS-01-80

               Order example:                                                                                                          Order example:
               NW-12-27-80-HKA: Manual clamp for NW-12-27-80 carriage                                                                  NSK-40: End caps for guide rail size 40, bolted



















                                                                                                                   ASEAN 09/2023  ASEAN 09/2023  Easily assembled and disassembled by hand using a   End caps for rail size 40, screwed

                                                                                                                                                                                      Part No.: NSK-40
                                                                                                                                 screwdriver. Part No.: NSKB
        150 Online tools and more information u www.igus-asean.com/drylinN                                                                  3D CAD files, prices and delivery time online u www.igus-asean.com/drylinN              151
