drylin  N
            ®
                              ®
      low-profile    drylin  N low-profile linear guides | Product range New
         linear
        guides
                     Accessories: End caps

                                                                    Order key


                                                               Type       Size



                                                                               Type:
                                                                               K: Aesthetic end cap for prism rail
                                                                               A: Rail end cap, bolted
                                                                               Z: Variable rail end cap, can be
                                                                 drylin ®  N -   end caps  Type  Rail width  clamped


























        Dimensions [mm]
         Part No.                   S                  T                 For rail        Min. static holding force
                                                                                                   [N]
         NSVK-27      New           1.5                8               NSV-01-27                   –
         NSVZ-27      New            –                 10              NSV-01-27                  200                                           ®
         NSVA-27      New            –                 10              NSV-01-27                  100                            drylin  linear technology -

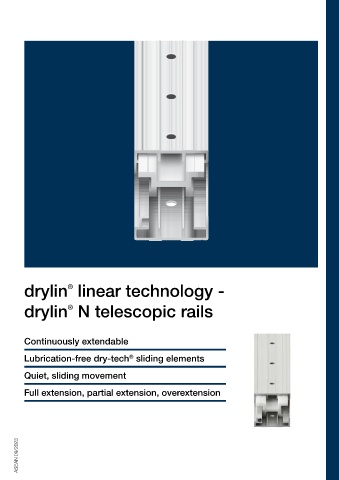

                                                                                                                                 drylin  N telescopic rails
                                                                                                                                                ®

              ®
        drylin  N replacement plastic sliders (set)
        Material iglidur  J
                      ®
                                                                                                                                 Continuously extendable
         Carriage type                                      Part No.
                                                            Sliding part set                                                                                         ®
         NW-01/02/27                                        NEK-01-27                                                            Lubrication-free dry-tech  sliding elements
         NW-01/02-27P                                       NEK-01-27-P
         NW-01/02-27-LLY                                    NEK-01-27-LLY                                                        Quiet, sliding movement
         NW-01/02-27-LLZ                                    NEK-01-27-LLZ
         NW-01/02-40                                        NEK-02-40                                                            Full extension, partial extension, overextension
         NW-01/02-40P                                       NEK-01-40-P
         NW-01/02-40-LLY                                    NEK-02-40-LLY
         NW-01/02-40-LLZ                                    NEK-02-40-LLZ
         NW-02-80                                           NEK-02-80
         NW-02-80-LLY                                       NEK-02-80-LLY
                                                                                                                   ASEAN 09/2023  ASEAN 09/2023
         NW-02-80-LLZ                                       NEK-02-80-LLZ



        152 Online tools and more information u www.igus-asean.com/drylinN
