drylin  N
            ®
                              ®

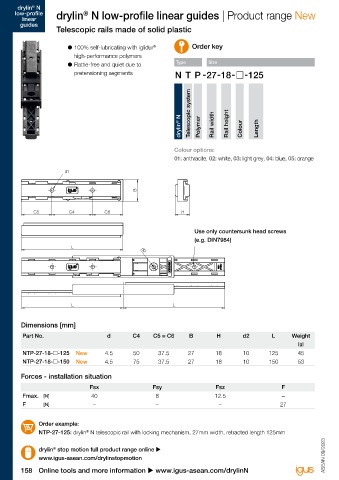

      low-profile    drylin  N low-profile linear guides | Product range New
         linear
        guides
                     Telescopic rails made of solid plastic

                                                       ®
                         ● 	100% self-lubricating with iglidur      Order key
                           high-performance polymers
                         ● 	Rattle-free and quiet due to       Type       Size
                           pretensioning segments



                                                                    Telescopic system



                                                                drylin ®  N  Polymer  Rail width  Rail height  Colour  Length





                                                              Colour options:
                        d1
                                                              01: anthracite, 02: white, 03: light grey, 04: blue, 05: orange
                        d d11
                        d1
                        d1                       B

                                                 B  BB
                                                 B
             C5          C4           C6                         H
                                      C
                         C
             C55         C44          C66                        H H
             C
             C5          C4           C6                         H
             C5          C4           C6                         H
                                                                     Use only countersunk head screws
                          L
                                                                     (e.g. DIN7984)
                                                   d2
                          L L
                          L
                          L                        d2
                                                   d2
                                                   d2
                                                   d2

                                                                                                                                 drylin  linear technology -
                                                                                                                                                ®

                          L                                   L                                                                  drylin  T rail guides
                                                                                                                                                ®
                          L L                                 L L
                          L                                   L
                          L
        Dimensions [mm]                                       L
         Part No.                      d        C4     C5 = C6     B         H        d2         L      Weight
                                                                                                          [g]                    Robust linear guides
         NTP-27-18- -125    New       4.5       50       37.5      27        18       10       125        45
         NTP-27-18- -150    New       4.5       75       37.5      27        18       10       150        53                     Adjustable bearing clearance


        Forces - installation situation                                                                                          Wear-resistant and durable
                                 Fsx                   Fsy                   Fsz                    F
         Fmax.  [N]              40                     8                   12.5                    –                            Dimensionally identical to recirculating
         F      [N]               –                     –                     –                    27                            ball-bearing guides


               Order example:                                                                                                    Lubrication and maintenance-free
               NTP-27-125:  drylin  N telescopic rail with locking mechanism, 27mm width, retracted length 125mm
                               ®

               drylin  stop motion full product range online u
                    ®
               www.igus-asean.com/drylinstopmotion                                                                 ASEAN 09/2023  ASEAN 09/2023
        158 Online tools and more information u www.igus-asean.com/drylinN
