P. 164

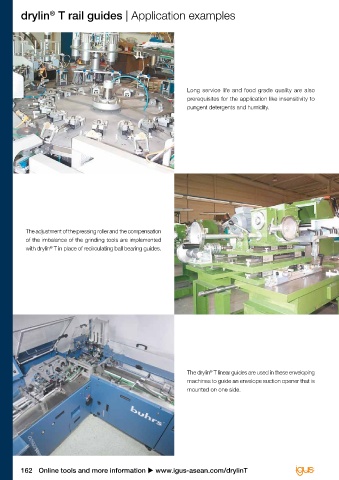

drylin T rail guides | Application examples drylin T rail guides | Online tools
®
®
Expert for linear guides: System selection
and service life calculation with CAD
Configure and calculate the service life of linear
bearings - constantly expanded by new sizes and
products
Easily calculate the service life of your required linear guide
Long service life and food grade quality are also and configure with a few clicks. Select a drylin system
®
prerequisites for the application like insensitivity to and add the relevant environmental parameters. Select the
pungent detergents and humidity. bearing size, carriage, number and position. Then enter
the distance between the rails and the mounting. Define
the coordinates for the drive location and the centre of
gravity, or enter these via the keyboard. Define the weight,
acceleration, and distance of the bearing and select a rail
length. The results are displayed.
u www.igus-asean.com/drylin-expert
The adjustment of the pressing roller and the compensation drylin CAD configurator: Generate
®
of the imbalance of the grinding tools are implemented complete 3D models for drylin linear
®
with drylin T in place of recirculating ball bearing guides.
®
technology according to your specifications
The igus CAD online configurator gives you the ability to
®
design and save your linear guide as a system, individual
components directly as a 3D model in all commonly used
formats, or to have these sent by e-mail - free of charge
and without registration.
u www.igus-asean.com/drylin-CAD
More information about the products can be
found in the igus download area
®
● Assembly instructions
The drylin T linear guides are used in these enveloping Assembly videos
®
machines to guide an envelope suction opener that is ● System design
mounted on one side. ●
● Catalogues
u www.igus-asean.com/igus-downloads
ASEAN 09/2023
