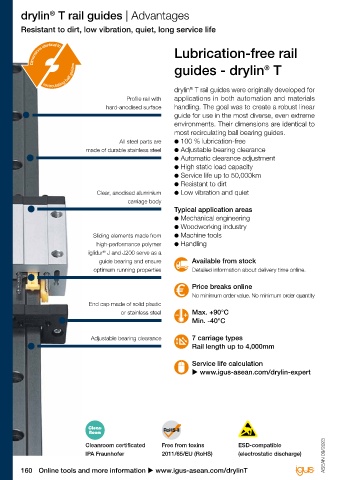

Page 162 - IGUS Linear

drylin T rail guides | Advantages drylin T rail guides | Product overview
®
®
Resistant to dirt, low vibration, quiet, long service life Dimensionally identical to most recirculating ball-bearing guides

Dimensions identical to Lubrication-free rail

recirculating ball guides guides - drylin T
®

drylin T rail guides were originally developed for
®
Profile rail with applications in both automation and materials
hard-anodised surface handling. The goal was to create a robust linear
guide for use in the most diverse, even extreme Performance Standard / with manual clamp Automatic
environments. Their dimensions are identical to ● 50% longer service life due to ● Manual clearance adjustment on ● Automatic clearance adjustment
most recirculating ball bearing guides. iglidur J200 sliding elements the carriage ● Easy assembly with pre-load key
®
All steel parts are ● 100 % lubrication-free ● Fast assembly ● Long service life with iglidur J ● Long service life with iglidur J
®
®
made of durable stainless steel ● Adjustable bearing clearance ● Adjustable bearing clearance sliding elements sliding elements
● Automatic clearance adjustment u From page 167 ● Manual clamp on carriage (optional) u Page 169
● High static load capacity u From page 168
● Service life up to 50,000km
● Resistant to dirt
Clear, anodised aluminium ● Low vibration and quiet
carriage body
Typical application areas
● Mechanical engineering
● Woodworking industry
Sliding elements made from ● Machine tools
high-performance polymer ● Handling
iglidur J and J200 serve as a
®
guide bearing and ensure Available from stock Heavy duty Compact Miniature guides /
optimum running properties Detailed information about delivery time online. ● Robust design, factory clearance ● Narrow guide carriages for small adjustable miniature guides
adjustment spaces ● Small compact design
Price breaks online ● Long service life with iglidur J ● Captive plastic sliders ● Easy to fit
®
No minimum order value. No minimum order quantity sliding elements ● Corrosion-resistant ● Clearance adjustment or pre-load
End cap made of solid plastic ● Fast assembly u Page 172 (optional)
or stainless steel Max. +90°C u Page 171 u Page 174
Min. -40°C

Adjustable bearing clearance 7 carriage types
Rail length up to 4,000mm

Service life calculation
u www.igus-asean.com/drylin-expert

®
®
Clamps drylin T rails Based on drylin T
®
● Compact or heavy duty design ● Lightweight, aluminium extruded drylin SLT linear module
● Available for installation sizes section u From page 569
15-30mm ● Robust and corrosion-resistant
● Holding force up to 500N hard-anodised surfaces
u Page 173 ● Shaft length delivered with
millimetre precision up to max.
Cleanroom certificated Free from toxins ESD-compatible 4,000mm
IPA Fraunhofer 2011/65/EU (RoHS) (electrostatic discharge) ASEAN 09/2023 ASEAN 09/2023 u Page 166

160 Online tools and more information u www.igus-asean.com/drylinT 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinT 161
