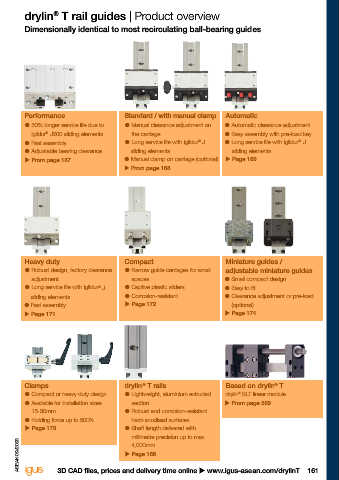

drylin  T rail guides | Advantages                                                                                       drylin  T rail guides | Product overview
                                                                                                                                           ®
                   ®
        Resistant to dirt, low vibration, quiet, long service life                                                               Dimensionally identical to most recirculating ball-bearing guides



             Dimensions identical to                          Lubrication-free rail


                 recirculating ball guides                    guides - drylin  T
                                                                                              ®


                                                              drylin  T rail guides were originally developed for
                                                                    ®
                                             Profile rail with   applications in both automation and materials
                                      hard-anodised surface   handling. The goal was to create a robust linear
                                                              guide for use in the most diverse, even extreme                    Performance                        Standard / with manual clamp       Automatic
                                                              environments. Their dimensions are identical to                    ● 	 50% longer service life due to   ● 	 Manual clearance adjustment on   ● 	Automatic clearance adjustment
                                                              most recirculating ball bearing guides.                              iglidur  J200 sliding elements     the carriage                     ● 	Easy assembly with pre-load key
                                                                                                                                        ®
                                           All steel parts are    ● 	 100 % lubrication-free                                     ● 	Fast assembly                   ● 	Long service life with iglidur  J    ● 	Long service life with iglidur  J
                                                                                                                                                                                                                                 ®
                                                                                                                                                                                             ®
                               made of durable stainless steel  ● 	 Adjustable bearing clearance                                 ● 	Adjustable bearing clearance      sliding elements                   sliding elements
                                                              ● 	 Automatic clearance adjustment                                 u From page 167                    ● 	Manual clamp on carriage (optional)  u Page 169
                                                              ● 	 High static load capacity                                                                         u From page 168
                                                              ● 	 Service life up to 50,000km
                                                              ● 	 Resistant to dirt
                                   Clear, anodised aluminium    ● 	 Low vibration and quiet
                                              carriage body
                                                              Typical application areas
                                                              ● 	Mechanical engineering
                                                              ● 	Woodworking industry
                                  Sliding elements made from   ● 	Machine tools
                                   high-performance polymer   ● 	Handling
                                iglidur  J and J200 serve as a
                                     ®
                                    guide bearing and ensure        Available from stock                                         Heavy duty                         Compact                            Miniature guides /
                                  optimum running properties        Detailed information about delivery time online.             ● 	 Robust design, factory clearance   ● 	Narrow guide carriages for small   adjustable miniature guides
                                                                                                                                   adjustment                         spaces                           ● 	Small compact design
                                                                    Price breaks online                                          ● 	Long service life with iglidur  J    ● 	Captive plastic sliders    ● 	Easy to fit
                                                                                                                                                          ®
                                                                    No minimum order value. No minimum order quantity              sliding elements                 ● 	Corrosion-resistant             ● 	Clearance adjustment or pre-load
                                End cap made of solid plastic                                                                    ● 	Fast assembly                   u Page 172                           (optional)
                                            or stainless steel      Max. +90°C                                                   u Page 171                                                            u Page 174
                                                                    Min. -40°C


                                 Adjustable bearing clearance       7 carriage types
                                                                    Rail length up to 4,000mm


                                                                    Service life calculation
                                                                    u www.igus-asean.com/drylin-expert

                                                                                                                                                                                                                        ®
                                                                                                                                                                          ®
                                                                                                                                 Clamps                             drylin  T rails                    Based on drylin  T
                                                                                                                                                                                                           ®
                                                                                                                                 ● 	 Compact or heavy duty design   ● 	 Lightweight, aluminium extruded   drylin  SLT linear module
                                                                                                                                 ● 	Available for installation sizes   section                         u From page 569
                                                                                                                                   15-30mm                          ● 	Robust and corrosion-resistant
                                                                                                                                 ● 	Holding force up to 500N          hard-anodised surfaces
                                                                                                                                 u Page 173                         ● 	Shaft length delivered with
                                                                                                                                                                      millimetre precision up to max.
                               Cleanroom certificated     Free from toxins           ESD-compatible                                                                   4,000mm
                               IPA Fraunhofer             2011/65/EU (RoHS)          (electrostatic discharge)     ASEAN 09/2023  ASEAN 09/2023                     u Page 166

        160 Online tools and more information u www.igus-asean.com/drylinT                                                                  3D CAD files, prices and delivery time online u www.igus-asean.com/drylinT              161
