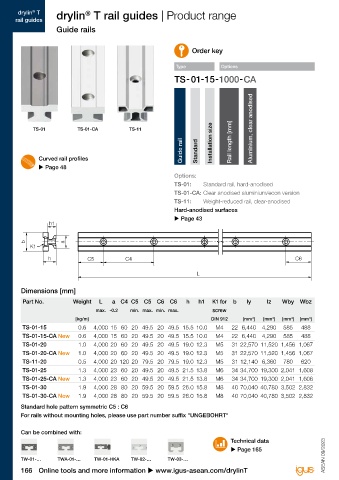

drylin T drylin T rail guides | Product range drylin T rail guides | Product range drylin T
®
®
rail guides rail guides
Guide rails High performance carriage with clearance adjustment
Order key Order key

Type Options Type

TS-01 TS-01-CA TS-11 Aluminium, clear anodised C
Guide rail Standard Installation size Rail length [mm] H5 Guide carriages Performance Installation size

Curved rail profiles
u Page 48
Options: K3
TS-01: Standard rail, hard-anodised A2 C2 K2
TS-01-CA: Clear anodised aluminium/econ version
TS-11: Weight-reduced rail, clear-anodised
Hard-anodised surfaces
u Page 43
h1

A
b a Y
K1
X
h C5 C4 C6 H
Z
L H1

Dimensions [mm] Dimensions [mm]
Part No. Weight L a C4 C5 C5 C6 C6 h h1 K1 for b ly lz Wby Wbz Part No. Weight H H5 A C A2 C2 H1 K2 K3 for Sliding
max. -0.2 min. max. min. max. screw ±0.35 ±0.35 thread cap screw elements
[kg/m] DIN 912 [mm ] [mm ] [mm ] [mm ] [kg]
4
4
3
3
TS-01-15 0.6 4,000 15 60 20 49.5 20 49.5 15.5 10.0 M4 22 6,440 4,290 585 488 TW-12-15 0.11 24 16.0 47 63 38 30 4.0 M5 M4 iglidur J200
®
TS-01-15-CA New 0.6 4,000 15 60 20 49.5 20 49.5 15.5 10.0 M4 22 6,440 4,290 585 488 TW-12-20 0.19 30 19.8 63 72 53 40 5.0 M6 M5 iglidur J200
®
TS-01-20 1.0 4,000 20 60 20 49.5 20 49.5 19.0 12.3 M5 31 22,570 11,520 1,456 1,067 TW-12-25 0.29 36 24.8 70 82 57 45 5.0 M8 M6 iglidur J200
®
TS-01-20-CA New 1.0 4,000 20 60 20 49.5 20 49.5 19.0 12.3 M5 31 22,570 11,520 1,456 1,067 TW-12-30 0.50 42 27.0 90 94 72 52 6.5 M10 M8 iglidur J200
®
TS-11-20 0.5 4,000 20 120 20 79.5 20 79.5 19.0 12.3 M5 31 12,140 6,360 780 620
TS-01-25 1.3 4,000 23 60 20 49.5 20 49.5 21.5 13.8 M6 34 34,700 19,300 2,041 1,608
TS-01-25-CA New 1.3 4,000 23 60 20 49.5 20 49.5 21.5 13.8 M6 34 34,700 19,300 2,041 1,608
TS-01-30 1.9 4,000 28 80 20 59.5 20 59.5 26.0 15.8 M8 40 70,040 40,780 3,502 2,832
TS-01-30-CA New 1.9 4,000 28 80 20 59.5 20 59.5 26.0 15.8 M8 40 70,040 40,780 3,502 2,832
Standard hole pattern symmetric C5 : C6
For rails without mounting holes, please use part number suffix "UNGEBOHRT"

Can be combined with: Can be combined with:
Technical data Technical data
u Page 165 u Page 165
TW-01-… TWA-01-… TW-01-HKA TW-02-… TW-03-… ASEAN 09/2023 ASEAN 09/2023 TS-01-20 TS-11-20
166 Online tools and more information u www.igus-asean.com/drylinT 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinT 167
