drylin T drylin T rail guides | Product range drylin T rail guides | Product range drylin T
®
®
rail guides rail guides

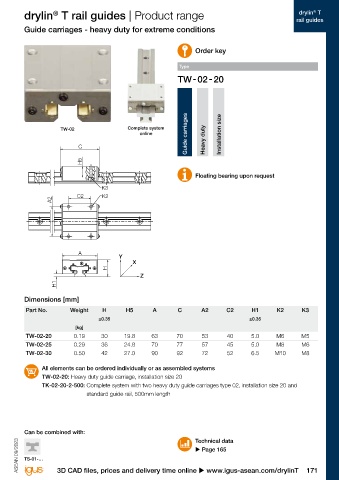

Guide carriages - with manual clamp Guide carriages - heavy duty for extreme conditions
Order key Order key

Type Options Type

TW-01-HKA Complete system TW-02 Complete system
online Guide carriages Installation size Manual clamp online Guide carriages Installation size
C Standard Heavy duty
C3 C1 C3 C
K2
H5 H5
K3 Other dimensions as standard design
TW-01-... u Page 169 Floating bearing upon request
K3
C2 K2
A2
A 2

C2

Kz A
Y
Ky X
H1 H
Dk A
Z Y
A1
X
H
Dimensions [mm] Z
H1
Part No. Size Kz Ky Dk Manual clamp
thread Dimensions [mm]
TW-01-15-HKA 15 19.0 11.5 20.0 M6 Part No. Weight H H5 A C A2 C2 H1 K2 K3
TW-01-20-HKA 20 18.0 15.0 28.0 M8
TW-01-25-HKA 25 17.0 19.0 28.0 M8 ±0.35 ±0.35
TW-01-30-HKA 30 20.0 21.5 28.0 M8 [kg]
TW-02-20 0.19 30 19.8 63 70 53 40 5.0 M6 M5
TW-02-25 0.29 36 24.8 70 77 57 45 5.0 M8 M6
All elements can be ordered individually or as assembled systems TW-02-30 0.50 42 27.0 90 92 72 52 6.5 M10 M8
TW-01-20-HKA: Guide carriage with manually adjustable clearance, installation size 20 and manual clamp All elements can be ordered individually or as assembled systems
TK-01-20-HKA-2-500: Complete system with two standard guide carriages type 01 with manual clamp, TW-02-20: Heavy duty guide carriage, installation size 20
installation size 20 and standard guide rail, 500mm length
TK-02-20-2-500: Complete system with two heavy duty guide carriages type 02, installation size 20 and
The manual clamp was developed for simple tasks. The creep behaviour of the clamped plastic causes a reduction standard guide rail, 500mm length
in clamping force over time (up to 70%). so no safety-relevant parts should be clamped. Please contact our technical
consultant, if you require other options for the clamping.

Can be combined with: Can be combined with:
Technical data Technical data
u Page 165 u Page 165
TS-01-… ASEAN 09/2023 ASEAN 09/2023 TS-01-…
170 Online tools and more information u www.igus-asean.com/drylinT 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinT 171
