drylin T drylin T rail guides | Product range drylin T rail guides | Product range drylin T
®
®
rail guides rail guides

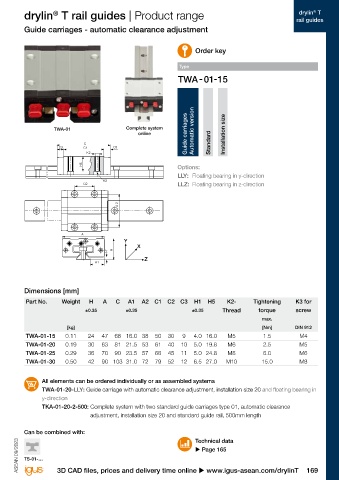

Guide carriages - manual clearance adjustment Guide carriages - automatic clearance adjustment
Order key Order key

Type Type

Guide carriages Installation size Installation size

TW-01 Complete system TWA-01 Complete system
online online Guide carriages Automatic version
C Standard C Standard
C3 C1 C3 C3 C1 C3
K2 K2

H5 Options: H5 Options:
LLY: Floating bearing in y-direction LLY: Floating bearing in y-direction
K3 K3
C2 LLZ: Floating bearing in z-direction C2 LLZ: Floating bearing in z-direction

A 2 A 2

A A
Y Y
X X
H1 H H1 H
Z Z
A1 A1

Dimensions [mm] Dimensions [mm]
Part No. Weight H A C A1 A2 C1 C2 C3 H1 H5 K2 Tightening K3 for Part No. Weight H A C A1 A2 C1 C2 C3 H1 H5 K2- Tightening K3 for
±0.35 ±0.35 ±0.35 thread torque screw ±0.35 ±0.35 ±0.35 Thread torque screw
max. max.
[kg] [Nm] DIN 912 [kg] [Nm] DIN 912
TW-01-15 0.11 24 47 74 16.0 38 50 30 9 4.0 16.0 M5 1.5 M4 TWA-01-15 0.11 24 47 68 16.0 38 50 30 9 4.0 16.0 M5 1.5 M4
TW-01-20 0.19 30 63 87 21.5 53 61 40 10 5.0 19.8 M6 2.5 M5 TWA-01-20 0.19 30 63 81 21.5 53 61 40 10 5.0 19.8 M6 2.5 M5
TW-01-25 0.29 36 70 96 23.5 57 68 45 11 5.0 24.8 M8 6.0 M6 TWA-01-25 0.29 36 70 90 23.5 57 68 45 11 5.0 24.8 M8 6.0 M6
TW-01-30 0.50 42 90 109 31.0 72 79 52 12 6.5 27.0 M10 15.0 M8 TWA-01-30 0.50 42 90 103 31.0 72 79 52 12 6.5 27.0 M10 15.0 M8

All elements can be ordered individually or as assembled systems All elements can be ordered individually or as assembled systems
TW-01-20-LLY: Standard guide carriage with manually adjustable clearance, installation size 20 and floating TWA-01-20-LLY: Guide carriage with automatic clearance adjustment, installation size 20 and floating bearing in
bearing in y-direction y-direction
TK-01-20-2-500: Complete system with two standard guide carriages type 01, installation size 20 and standard TKA-01-20-2-500: Complete system with two standard guide carriages type 01, automatic clearance
guide rail, 500mm length adjustment, installation size 20 and standard guide rail, 500mm length

Can be combined with: Can be combined with:
Technical data Technical data
u Page 165 u Page 165
TS-01-… ASEAN 09/2023 ASEAN 09/2023 TS-01-…
168 Online tools and more information u www.igus-asean.com/drylinT 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinT 169
