P. 170

®
                                                                                                                                           ®
       drylin  T     drylin  T rail guides | Product range                                                                       drylin  T rail guides | Product range                                                           drylin  T
            ®
                                                                                                                                                                                                                                      ®
      rail guides                                                                                                                                                                                                               rail guides

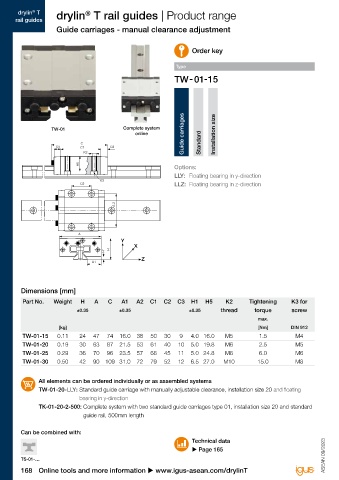

                     Guide carriages - manual clearance adjustment                                                               Guide carriages - automatic clearance adjustment
                                                                    Order key                                                                                                                Order key


                                                               Type                                                                                                                    Type









                                                                 Guide carriages  Installation size                                                                                                    Installation size

                   TW-01                    Complete system                                                                                TWA-01                   Complete system
                                                 online                                                                                                                  online           Guide carriages   Automatic version
                             C                                         Standard                                                                       C                                           Standard
                     C3      C1         C3                                                                                                   C3      C1         C3
                              K2                                                                                                                      K2

                             H5                               Options:                                                                               H5                               Options:
                                                              LLY:  Floating bearing in y-direction                                                                                   LLY:  Floating bearing in y-direction
                                    K3                                                                                                                      K3
                             C2                               LLZ:  Floating bearing in z-direction                                                  C2                               LLZ:  Floating bearing in z-direction


                                         A 2                                                                                                                     A 2





                             A                                                                                                                       A
                                            Y                                                                                                                       Y
                                                X                                                                                                                       X
                                      H1  H                                                                                                                   H1  H
                                                   Z                                                                                                                       Z
                                 A1                                                                                                                      A1




        Dimensions [mm]                                                                                                          Dimensions [mm]
         Part No.   Weight   H    A    C    A1   A2   C1   C2  C3   H1   H5     K2       Tightening    K3 for                    Part No.     Weight   H    A    C   A1   A2  C1 C2 C3      H1   H5     K2-      Tightening     K3 for
                            ±0.35          ±0.35                   ±0.35       thread     torque       screw                                          ±0.35         ±0.35                  ±0.35      Thread       torque       screw
                                                                                            max.                                                                                                                    max.
                      [kg]                                                                  [Nm]       DIN 912                                  [kg]                                                                [Nm]        DIN 912
         TW-01-15    0.11    24   47   74  16.0  38   50   30   9   4.0 16.0    M5          1.5          M4                      TWA-01-15     0.11    24   47  68 16.0 38     50  30   9   4.0 16.0    M5          1.5          M4
         TW-01-20    0.19    30   63   87  21.5  53   61   40   10  5.0 19.8    M6          2.5          M5                      TWA-01-20     0.19    30   63  81 21.5 53    61   40   10  5.0 19.8    M6          2.5          M5
         TW-01-25    0.29    36   70   96  23.5  57   68   45   11  5.0 24.8    M8          6.0          M6                      TWA-01-25     0.29    36   70  90 23.5 57    68   45   11  5.0 24.8    M8          6.0          M6
         TW-01-30    0.50    42   90  109 31.0   72   79   52  12   6.5 27.0    M10        15.0          M8                      TWA-01-30     0.50    42   90 103 31.0 72    79   52   12  6.5 27.0   M10          15.0         M8



               All elements can be ordered individually or as assembled systems                                                        All elements can be ordered individually or as assembled systems
               TW-01-20-LLY:  Standard guide carriage with manually adjustable clearance, installation size 20 and floating            TWA-01-20-LLY: Guide carriage with automatic clearance adjustment, installation size 20 and floating bearing in
                             bearing in y-direction                                                                                    y-direction
               TK-01-20-2-500:  Complete system with two standard guide carriages type 01, installation size 20 and standard           TKA-01-20-2-500:  Complete system with two standard guide carriages type 01, automatic clearance
                              guide rail, 500mm length                                                                                                  adjustment, installation size 20 and standard guide rail, 500mm length


        Can be combined with:                                                                                                    Can be combined with:
                                                                    Technical data                                                                                                           Technical data
                                                                    u Page 165                                                                                                               u Page 165
        TS-01-…                                                                                                    ASEAN 09/2023  ASEAN 09/2023  TS-01-…
        168 Online tools and more information u www.igus-asean.com/drylinT                                                                  3D CAD files, prices and delivery time online u www.igus-asean.com/drylinT              169
