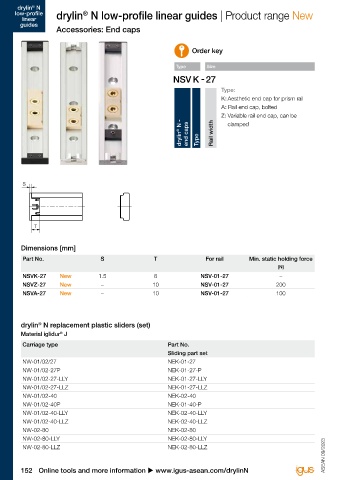

Page 154 - IGUS Linear

drylin N
®
®
low-profile drylin N low-profile linear guides | Product range New
linear
guides
Accessories: End caps

Order key

Type Size

Type:
K: Aesthetic end cap for prism rail
A: Rail end cap, bolted
Z: Variable rail end cap, can be
drylin ® N - end caps Type Rail width clamped

Dimensions [mm]
Part No. S T For rail Min. static holding force
[N]
NSVK-27 New 1.5 8 NSV-01-27 –
NSVZ-27 New – 10 NSV-01-27 200 ®
NSVA-27 New – 10 NSV-01-27 100 drylin linear technology -
drylin N telescopic rails
®

®
drylin N replacement plastic sliders (set)
Material iglidur J
®
Continuously extendable
Carriage type Part No.
Sliding part set ®
NW-01/02/27 NEK-01-27 Lubrication-free dry-tech sliding elements
NW-01/02-27P NEK-01-27-P
NW-01/02-27-LLY NEK-01-27-LLY Quiet, sliding movement
NW-01/02-27-LLZ NEK-01-27-LLZ
NW-01/02-40 NEK-02-40 Full extension, partial extension, overextension
NW-01/02-40P NEK-01-40-P
NW-01/02-40-LLY NEK-02-40-LLY
NW-01/02-40-LLZ NEK-02-40-LLZ
NW-02-80 NEK-02-80
NW-02-80-LLY NEK-02-80-LLY
ASEAN 09/2023 ASEAN 09/2023
NW-02-80-LLZ NEK-02-80-LLZ
