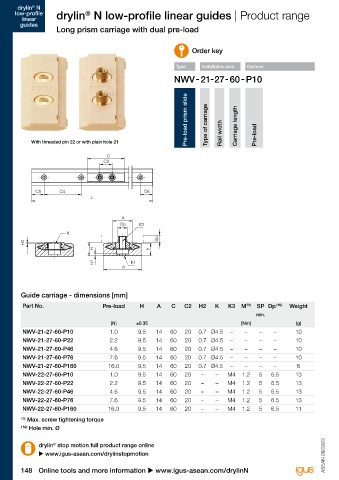

Page 150 - IGUS Linear

drylin N drylin N
®
®
®
®
low-profile drylin N low-profile linear guides | Product range drylin N low-profile linear guides | Technical data low-profile
linear linear
guides guides
Long prism carriage with dual pre-load
Standard carriages
Order key
Part No. Average displacement force
Type Installation size Options
[N]
NWV-21/22-27-35-P05 1.0
NWV-21/22-27-35-P11 2.2
4.6
NWV-21/22-27-35-P23
Pre-load prism slide Type of carriage Carriage length NWV-21/22-27-35-P38 Guaranteed holding force
7.6
16.0
NWV-21/22-27-35-P80

Part No.
With threaded pin 22 or with plain hole 21 Rail width Pre-load [N]
NWV-21/22-27-35-P05 0.5
C NWV-21/22-27-35-P11 1.1
C2
NWV-21/22-27-35-P23 2.3
NWV-21/22-27-35-P38 3.8
NWV-21/22-27-35-P80 8.0
C5 C4 C6
L
Long carriages
A
Dp K3 Part No. Average displacement force
K [N]
Sp
H2 NWV-21/22-27-60-P10 2.0
H h NWV-21/22-27-60-P22 4.4
NWV-21/22-27-60-P46 9.2
h1 K1
a NWV-21/22-27-60-P76 15.2
NWV-21/22-27-60-P160 32.0

Guide carriage - dimensions [mm] Part No. Guaranteed holding force
[N]
Part No. Pre-load H A C C2 H2 K K3 M 75) SP Dp 159) Weight
NWV-21/22-27-60-P10 1.0
min.
NWV-21/22-27-60-P22 2.2
[N] ±0.35 [Nm] [g]
NWV-21-27-60-P10 1.0 9.5 14 60 20 0.7 Ø4.5 – – – – 10 NWV-21/22-27-60-P46 4.6
NWV-21-27-60-P22 2.2 9.5 14 60 20 0.7 Ø4.5 – – – – 10 NWV-21/22-27-60-P76 7.6
NWV-21-27-60-P46 4.6 9.5 14 60 20 0.7 Ø4.5 – – – – 10 NWV-21/22-27-60-P160 16.0
NWV-21-27-60-P76 7.6 9.5 14 60 20 0.7 Ø4.5 – – – – 10
NWV-21-27-60-P160 16.0 9.5 14 60 20 0.7 Ø4.5 – – – – 6
NWV-22-27-60-P10 1.0 9.5 14 60 20 – – M4 1.2 5 6.5 13 Note:
NWV-22-27-60-P22 2.2 9.5 14 60 20 – – M4 1.2 5 6.5 13 The average displacement force values apply to unloaded carriages at centric drive. The real displacement forces
NWV-22-27-60-P46 4.6 9.5 14 60 20 – – M4 1.2 5 6.5 13 depend to a large extent on the displacement speed. At creep movement (few mm/min.), the values are slightly
NWV-22-27-60-P76 7.6 9.5 14 60 20 – – M4 1.2 5 6.5 13 over the guaranteed holding force. At higher displacement forces, the values can considerably exceed the average
NWV-22-27-60-P160 16.0 9.5 14 60 20 – – M4 1.2 5 6.5 11 displacement force. The values do not apply for applications in which dirt and moisture ingress into the system.
The holding force cited is a minimum value - the displacement force required to move the carriage may be higher.
75) Max. screw tightening torque
159) Hole min. Ø

®
®
drylin stop motion full product range online drylin stop motion full product range online
u www.igus-asean.com/drylinstopmotion ASEAN 09/2023 ASEAN 09/2023 u www.igus-asean.com/drylinstopmotion
148 Online tools and more information u www.igus-asean.com/drylinN 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinN 149
