drylin  T rail guides | Ordering options
                   ®



        drylin  T - system design
                ®


            10,0



             5,0





                                                              TW-01/-02/-12-30
             2,0                                        TW-01/-12-15
                                                           TW-01/-02/-03/-12-25
                                                          TW-01/-02/-12-25
             1,0


          Permissible average speed [m/s]  0,5







             0,2



             0,1
                10         20             50         100        200             500       1.000      2.000
                Centric bearing load [N]

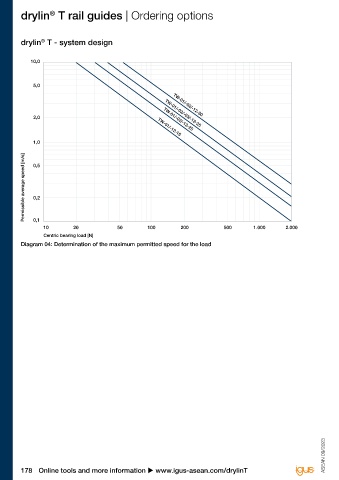

        Diagram 04: Determination of the maximum permitted speed for the load
