P. 181
drylin T rail guides | Ordering options
®
drylin T - system design
®
10,0
5,0
TW-01/-02/-12-30
2,0 TW-01/-12-15
TW-01/-02/-03/-12-25
TW-01/-02/-12-25
1,0
Permissible average speed [m/s] 0,5
0,2
0,1
10 20 50 100 200 500 1.000 2.000
Centric bearing load [N]
Diagram 04: Determination of the maximum permitted speed for the load

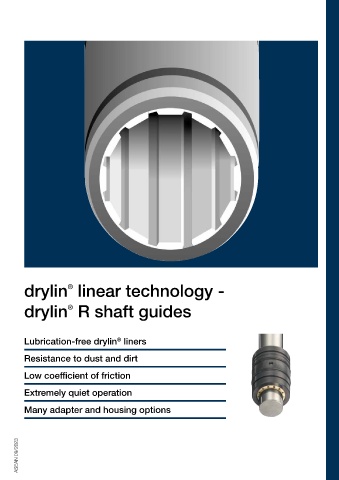

drylin linear technology -
®
drylin R shaft guides
®
Lubrication-free drylin liners
®
Resistance to dust and dirt
Low coefficient of friction
Extremely quiet operation
Many adapter and housing options
ASEAN 09/2023 ASEAN 09/2023
178 Online tools and more information u www.igus-asean.com/drylinT
