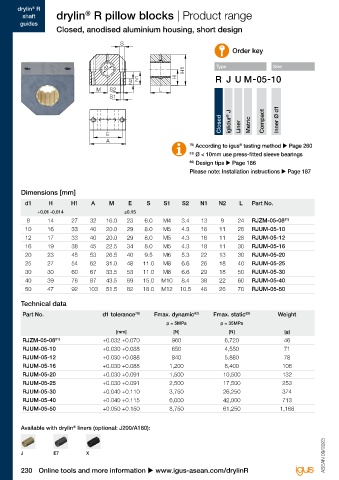

Page 232 - IGUS Linear

drylin R drylin R
®
®
®
®
shaft drylin R pillow blocks | Product range drylin R pillow blocks | Product range shaft
guides guides
Closed, anodised aluminium housing, short design Adjustable anodised aluminium housing, short design
S S S
Order key Order key
Sb Sb
d1
d1
d1 H1 Type Size N1 H H1 H1 Type Size
N2 N1 H N2 N2 S2 N1 H
M S2 L M M S2
S1
S1
S1

Closed iglidur ® J Liner Metric Compact Inner Ø d1 L L E E E1 E1 Closed iglidur ® J Liner Metric Adjustable Compact Inner Ø d1

E A A
A
®
78) According to igus testing method u Page 260 ● With adjustable clearance 78) According to igus testing method u Page 260
®
81) Ø < 10mm use press-fitted sleeve bearings 82) Design tips u Page 186
82) Design tips u Page 186 Please note: Installation instructions u Page 187
Please note: Installation instructions u Page 187

Dimensions [mm] Dimensions [mm]

d1 H H1 A M E S S1 S2 N1 N2 L Part No. d1 H H1 A M E E1 S S1 S2 Sb N1 N2 L Part No.
+0.01 -0.014 ±0.15 +0.01 ±0.15 ±0.15
8 14 27 32 16.0 23 6.0 M4 3.4 13 9 24 RJZM-05-08 81) -0.014
10 16 33 40 20.0 29 8.0 M5 4.3 16 11 26 RJUM-05-10 12 17 33 40 20.0 29 18.0 8.0 4.3 M5 2 16 11 28 RJUME-05-12
12 17 33 40 20.0 29 8.0 M5 4.3 16 11 28 RJUM-05-12 16 19 38 45 22.5 34 19.0 8.0 4.3 M5 2 18 11 30 RJUME-05-16
16 19 38 45 22.5 34 8.0 M5 4.3 18 11 30 RJUM-05-16 20 23 45 53 26.5 40 20.0 9.5 5.3 M6 2 22 13 30 RJUME-05-20
20 23 45 53 26.5 40 9.5 M6 5.3 22 13 30 RJUM-05-20 25 27 54 62 31.0 48 25.5 11.0 6.6 M8 2 26 18 40 RJUME-05-25
25 27 54 62 31.0 48 11.0 M8 6.6 26 18 40 RJUM-05-25 30 30 60 67 33.5 53 30.5 11.0 6.6 M8 2 29 18 50 RJUME-05-30
30 30 60 67 33.5 53 11.0 M8 6.6 29 18 50 RJUM-05-30 40 39 76 87 43.5 69 36.0 15.0 8.4 M10 2 38 22 60 RJUME-05-40
40 39 76 87 43.5 69 15.0 M10 8.4 38 22 60 RJUM-05-40 50 47 92 103 51.5 82 44.0 18.0 10.5 M12 2 46 26 70 RJUME-05-50
50 47 92 103 51.5 82 18.0 M12 10.5 46 26 70 RJUM-05-50

Technical data Technical data
Part No. d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight Part No. d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight
p = 5MPa p = 35MPa p = 5MPa p = 35MPa
[mm] [N] [N] [g] [mm] [N] [N] [g]
RJZM-05-08 81) +0.032 +0.070 960 6,720 46 RJUME-05-12 adjustable 840 5,880 78
RJUM-05-10 +0.030 +0.088 650 4,550 71 RJUME-05-16 adjustable 1,200 8,400 106
RJUM-05-12 +0.030 +0.088 840 5,880 78 RJUME-05-20 adjustable 1,500 10,500 132
RJUM-05-16 +0.030 +0.088 1,200 8,400 106 RJUME-05-25 adjustable 2,500 17,500 253
RJUM-05-20 +0.030 +0.091 1,500 10,500 132 RJUME-05-30 adjustable 3,750 26,250 374
RJUM-05-25 +0.030 +0.091 2,500 17,500 253 RJUME-05-40 adjustable 6,000 42,000 713
RJUM-05-30 +0.040 +0.110 3,750 26,250 374 RJUME-05-50 adjustable 8,750 61,250 1,168
RJUM-05-40 +0.040 +0.115 6,000 42,000 713
RJUM-05-50 +0.050 +0.150 8,750 61,250 1,168

Available with drylin liners (optional: J200/A180): Available with drylin liners (optional: J200/A180):
®
®
ASEAN 09/2023 ASEAN 09/2023

J E7 X J E7 X

230 Online tools and more information u www.igus-asean.com/drylinR 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR 231
