drylin R drylin R
®
®
®
®
shaft drylin R linear plain bearings | Product range drylin R linear plain bearings | Product range shaft
guides guides

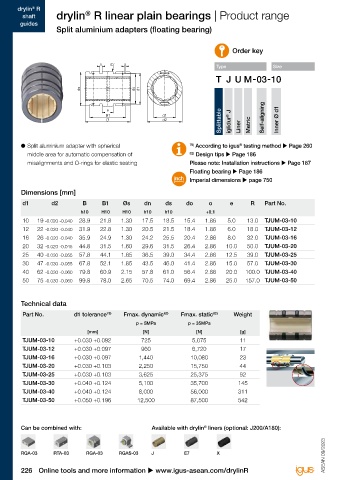

Split aluminium adapters (floating bearing) Open, anodised aluminium adapters - for supported shafts
Order key Order key

o R s Type Size s f a Type Size

ds do dn d2 dn d1 90° W

e B1 h
Splittable iglidur ® J Liner Metric Open iglidur ® J Liner Metric Standard
B
B1 d1
B d2 Self-aligning Inner Ø d1 Inner Ø d1
0° 90° 180°
®
®
● Split aluminium adapter with spherical 78) According to igus testing method u Page 260 78) According to igus testing method u Page 260
middle area for automatic compensation of 82) Design tips u Page 186 82) Design tips u Page 186
misalignments and O-rings for elastic seating Please note: Installation instructions u Page 187 Please note: Installation instructions u Page 187
Floating bearing u Page 186 Imperial dimensions u Page 748
Imperial dimensions u page 750
Dimensions [mm] Dimensions [mm]

d1 d2 B B1 Øs dn ds do o e R Part No. d1 d2 B W a dn B1 Øs f h Part No.
h10 H10 H10 h10 h10 +0.1 h7 h10 -1 +0.1 h10 H10 H10 ±0.2 -0.5
10 19 -0.020 -0.040 28.9 21.8 1.30 17.5 18.5 15.4 1.86 5.0 13.0 TJUM-03-10 10 19 29 7.3 0.0 17.5 21.6 1.30 0 1.2 OJUM-01-10
12 22 -0.020 -0.040 31.9 22.8 1.30 20.5 21.5 18.4 1.86 6.0 18.0 TJUM-03-12 12 22 32 9.0 3.0 20.5 22.6 1.30 1.33 (7°) 1.2 OJUM-01-12
16 26 -0.020 -0.040 35.9 24.9 1.30 24.2 25.5 20.4 2.86 8.0 32.0 TJUM-03-16 16 26 36 11.6 2.2 24.2 24.6 1.30 0 1.2 OJUM-01-16
20 32 -0.020 -0.045 44.8 31.5 1.60 29.6 31.5 26.4 2.86 10.0 50.0 TJUM-03-20 20 32 45 12.0 2.2 29.6 31.2 1.60 0 1.2 OJUM-01-20
25 40 -0.030 -0.055 57.8 44.1 1.85 36.5 39.0 34.4 2.86 12.5 39.0 TJUM-03-25 25 40 58 14.5 3.0 36.5 43.7 1.85 -1.5 (-4.3°) 1.5 OJUM-01-25
30 47 -0.030 -0.055 67.8 52.1 1.85 43.5 46.0 41.4 2.86 15.0 57.0 TJUM-03-30 30 47 68 16.6 3.0 43.5 51.7 1.85 2 (4.9°) 2.0 OJUM-01-30
40 62 -0.030 -0.060 79.8 60.9 2.15 57.8 61.0 56.4 2.86 20.0 100.0 TJUM-03-40 40 62 80 21.0 3.0 57.8 60.3 2.15 1.5 (2.8°) 2.0 OJUM-01-40
50 75 -0.030 -0.060 99.8 78.0 2.65 70.5 74.0 69.4 2.86 25.0 157.0 TJUM-03-50 50 75 100 25.5 5.0 70.5 77.3 2.65 2.5 (3.8°) 2.0 OJUM-01-50

Technical data Technical data
Part No. d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight Part No. d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight
p = 5MPa p = 35MPa p = 5MPa p = 35MPa
[mm] [N] [N] [g] 0º 90º 180º 0º 90º 180º [g]
TJUM-03-10 +0.030 +0.092 725 5,075 11 OJUM-01-10 +0.030 +0.088 725 500 196 5,075 3,500 1,370 11
TJUM-03-12 +0.030 +0.097 960 6,720 17 OJUM-01-12 +0.030 +0.088 960 635 240 6,720 4,445 1,680 15
TJUM-03-16 +0.030 +0.097 1,440 10,080 23 OJUM-01-16 +0.030 +0.088 1,440 990 396 10,080 6,943 2,772 21
TJUM-03-20 +0.030 +0.103 2,250 15,750 44 OJUM-01-20 +0.030 +0.091 2,250 1,800 900 15,750 12,600 6,300 42
TJUM-03-25 +0.030 +0.103 3,625 25,375 92 OJUM-01-25 +0.030 +0.091 3,625 2.953 1,523 25,375 20,670 10,658 70
TJUM-03-30 +0.040 +0.124 5,100 35,700 145 OJUM-01-30 +0.040 +0.110 5,100 4,250 2,278 35,700 29,735 15,946 132
TJUM-03-40 +0.040 +0.124 8,000 56,000 311 OJUM-01-40 +0.040 +0.115 8,000 6,810 3,800 56,000 47,660 26,660 278
TJUM-03-50 +0.050 +0.196 12,500 87,500 542 OJUM-01-50 +0.050 +0.150 12,500 10,750 6,125 87,500 75,265 42,875 479

Can be combined with: Available with drylin liners (optional: J200/A180): Can be combined with: Available with drylin liners (optional: J200/A180):
®
®
ASEAN 09/2023 ASEAN 09/2023

RQA-03 RTA-03 RGA-03 RGAS-03 J E7 X RQA-01 RTA-01 RGA-01 RGAS-01 J E7 X

226 Online tools and more information u www.igus-asean.com/drylinR 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR 227
