drylin R drylin R
®
®
®
®
shaft drylin R linear plain bearings | Product range drylin R linear plain bearings | Product range shaft
guides guides

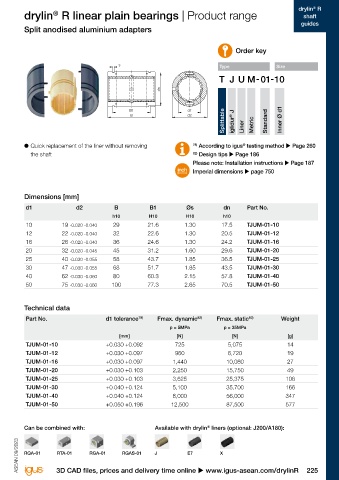

Closed aluminium adapters (floating bearing) Split anodised aluminium adapters
Order key Order key

o R s s s
Type Size Type Size

ds do dn dn dn

e B1B1 d1d1
B1 d1 BB d2d2
Closed Liner Metric Liner Metric
B d2 iglidur ® J Self-aligning Inner Ø d1 Splittable iglidur ® J Standard Inner Ø d1

®
®
● With reduced outer diameter, spherical middle 78) According to igus testing method u Page 260 ● Quick replacement of the liner without removing 78) According to igus testing method u Page 260
area, O-rings for elastic fit and hard-anodised 81) Ø < 10mm use press-fitted sleeve plain bearings the shaft 82) Design tips u Page 186
surface 82) Design tips u Page 186 Please note: Installation instructions u Page 187
Please note: Installation instructions u Page 187 Imperial dimensions u page 750
Floating bearing u Page 186
Imperial dimensions u Page 749
Dimensions [mm] Dimensions [mm]

d1 d2 B B1 Øs dn ds do o e R Part No. d1 d2 B B1 Øs dn Part No.
h8 h10 H10 H10 h10 h10 +0.1 h10 H10 H10 h10
8 15.8 24.9 16.4 1.10 15.0 15.5 13.2 1.86 5.0 20.0 RJZM-03-08 81) 10 19 -0.020 -0.040 29 21.6 1.30 17.5 TJUM-01-10
10 18.8 28.9 21.8 1.30 17.5 18.5 15.4 1.86 5.0 13.0 RJUM-03-10 12 22 -0.020 -0.040 32 22.6 1.30 20.5 TJUM-01-12
12 21.8 31.9 22.8 1.30 20.5 21.5 18.4 1.86 6.0 18.0 RJUM-03-12 16 26 -0.020 -0.040 36 24.6 1.30 24.2 TJUM-01-16
16 25.8 35.9 24.9 1.30 24.2 25.5 20.4 2.86 8.0 32.0 RJUM-03-16 20 32 -0.020 -0.045 45 31.2 1.60 29.6 TJUM-01-20
20 31.8 44.8 31.5 1.60 29.6 31.5 26.4 2.86 10.0 50.0 RJUM-03-20 25 40 -0.030 -0.055 58 43.7 1.85 36.5 TJUM-01-25
25 39.8 57.8 44.1 1.85 36.5 39.0 34.4 2.86 12.5 39.0 RJUM-03-25 30 47 -0.030 -0.055 68 51.7 1.85 43.5 TJUM-01-30
30 46.7 67.8 52.1 1.85 43.5 46.0 41.4 2.86 15.0 57.0 RJUM-03-30 40 62 -0.030 -0.060 80 60.3 2.15 57.8 TJUM-01-40
40 61.7 79.8 60.9 2.15 57.8 61.0 56.4 2.86 20.0 100.0 RJUM-03-40 50 75 -0.030 -0.060 100 77.3 2.65 70.5 TJUM-01-50
50 74.7 99.8 78.0 2.65 70.5 74.0 69.4 2.86 25.0 157.0 RJUM-03-50

Technical data Technical data
Part No. Housing d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight Part No. d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight
hole p = 5MPa p = 35MPa p = 5MPa p = 35MPa
Ø H7 [mm] [mm] [N] [N] [g] [mm] [N] [N] [g]
RJZM-03-08 81) 16 +0.032 +0.070 960 6,720 8 TJUM-01-10 +0.030 +0.092 725 5,075 14
RJUM-03-10 19 +0.030 +0.088 725 5,075 11 TJUM-01-12 +0.030 +0.097 960 6,720 19
RJUM-03-12 22 +0.030 +0.088 960 6,720 17 TJUM-01-16 +0.030 +0.097 1,440 10,080 27
RJUM-03-16 26 +0.030 +0.088 1,440 10,080 23 TJUM-01-20 +0.030 +0.103 2,250 15,750 49
RJUM-03-20 32 +0.030 +0.091 2,250 15,750 44 TJUM-01-25 +0.030 +0.103 3,625 25,375 106
RJUM-03-25 40 +0.030 +0.091 3,625 25,375 92 TJUM-01-30 +0.040 +0.124 5,100 35,700 166
RJUM-03-30 47 +0.040 +0.110 5,100 35,700 145 TJUM-01-40 +0.040 +0.124 8,000 56,000 347
RJUM-03-40 62 +0.040 +0.115 8,000 56,000 311 TJUM-01-50 +0.050 +0.196 12,500 87,500 577
RJUM-03-50 75 +0.050 +0.150 12,500 87,500 542

Can be combined with: Available with drylin liners (optional: J200/A180): Can be combined with: Available with drylin liners (optional: J200/A180):
®
®
ASEAN 09/2023 ASEAN 09/2023

RQA-03 RTA-03 RGA-03 RGAS-03 J E7 X RQA-01 RTA-01 RGA-01 RGAS-01 J E7 X

224 Online tools and more information u www.igus-asean.com/drylinR 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR 225
