drylin R drylin R
®
®
®
®
shaft drylin R linear plain bearings | Product range drylin R linear plain bearings | Product range shaft
guides guides

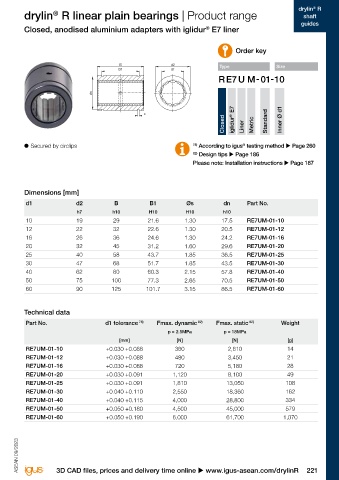

Closed stainless steel adapters made of stainless steel 303 Closed, anodised aluminium adapters with iglidur E7 liner
®
Order key Order key

B d2 Type Size Material B d2 Type Size
B1 d1 B1 d1

dn dn

s Stainless steel s
Closed iglidur ® J Liner Metric Standard Inner Ø d1 Closed iglidur ® E7 Liner Metric Standard Inner Ø d1

®
®
● Secured by circlips 78) According to igus testing method u Page 260 ● Secured by circlips 78) According to igus testing method u Page 260
82) Design tips u Page 186 82) Design tips u Page 186
Please note: Installation instructions u Page 187 Please note: Installation instructions u Page 187

Dimensions [mm] Dimensions [mm]

d1 d2 B B1 Øs dn Part No. d1 d2 B B1 Øs dn Part No.
h7 h10 H10 H10 h10 h7 h10 H10 H10 h10
12 22 32 22.6 1.30 20.5 RJUM-01-12-ES 10 19 29 21.6 1.30 17.5 RE7UM-01-10
16 26 36 24.6 1.30 24.2 RJUM-01-16-ES 12 22 32 22.6 1.30 20.5 RE7UM-01-12
20 32 45 31.2 1.60 29.6 RJUM-01-20-ES 16 26 36 24.6 1.30 24.2 RE7UM-01-16
25 40 58 43.7 1.85 36.5 RJUM-01-25-ES 20 32 45 31.2 1.60 29.6 RE7UM-01-20
30 47 68 51.7 1.85 43.5 RJUM-01-30-ES 25 40 58 43.7 1.85 36.5 RE7UM-01-25
30 47 68 51.7 1.85 43.5 RE7UM-01-30
40 62 80 60.3 2.15 57.8 RE7UM-01-40
50 75 100 77.3 2.65 70.5 RE7UM-01-50
60 90 125 101.7 3.15 86.5 RE7UM-01-60

Technical data Technical data
Part No. d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight Part No. d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight
p = 5MPa p = 35MPa p = 2.5MPa p = 18MPa
[mm] [N] [N] [g] [mm] [N] [N] [g]
RJUM-01-12-ES +0.030 +0.088 960 6,720 60 RE7UM-01-10 +0.030 +0.088 360 2,610 14
RJUM-01-16-ES +0.030 +0.088 1,440 10,080 84 RE7UM-01-12 +0.030 +0.088 480 3,450 21
RJUM-01-20-ES +0.030 +0.091 2,250 15,750 147 RE7UM-01-16 +0.030 +0.088 720 5,180 28
RJUM-01-25-ES +0.030 +0.091 3,625 25,375 324 RE7UM-01-20 +0.030 +0.091 1,120 8,100 49
RJUM-01-30-ES +0.040 +0.110 5,100 35,700 486 RE7UM-01-25 +0.030 +0.091 1,810 13,050 108
RE7UM-01-30 +0.040 +0.110 2,550 18,360 162
RE7UM-01-40 +0.040 +0.115 4,000 28,800 334
RE7UM-01-50 +0.050 +0.180 4,500 45,000 579
RE7UM-01-60 +0.050 +0.190 6,000 61,700 1,070
Available with drylin liners (optional: J200/A180):
®
ASEAN 09/2023 ASEAN 09/2023

J E7 X

220 Online tools and more information u www.igus-asean.com/drylinR 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR 221
