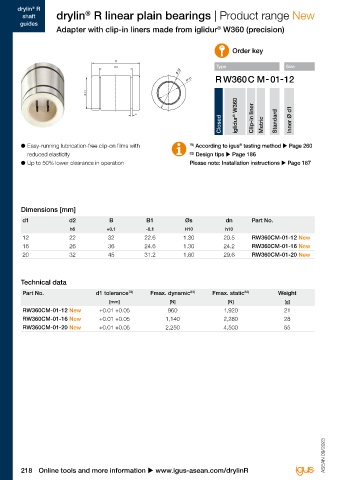

drylin R
®
®
shaft drylin R linear plain bearings | Product range New Notes
guides
Adapter with clip-in liners made from iglidur W360 (precision)
®

Order key

B B
B1 B1 Type Size
Ø d2 Ø d2
Ø d1 Ø d1

Ø dn Ø dn

s s iglidur ® W360 Clip-in liner
Closed Metric Standard Inner Ø d1

®
● Easy-running lubrication-free clip-on films with 78) According to igus testing method u Page 260
reduced elasticity 82) Design tips u Page 186
● Up to 50% lower clearance in operation Please note: Installation instructions u Page 187

Dimensions [mm]

d1 d2 B B1 Øs dn Part No.
h6 +0.1 -0.1 H10 h10
12 22 32 22.6 1.30 20.5 RW360CM-01-12 New
16 26 36 24.6 1.30 24.2 RW360CM-01-16 New
20 32 45 31.2 1.60 29.6 RW360CM-01-20 New

Technical data

Part No. d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight
[mm] [N] [N] [g]
RW360CM-01-12 New +0.01 +0.05 960 1,920 21
RW360CM-01-16 New +0.01 +0.05 1,140 2,280 28
RW360CM-01-20 New +0.01 +0.05 2,250 4,500 55
