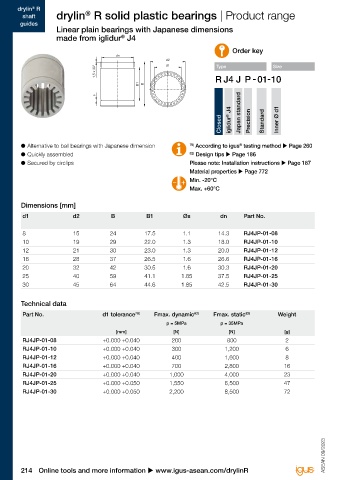

drylin R drylin R
®
®
®
®
shaft drylin R solid plastic bearings | Product range drylin R solid plastic bearings | Product range shaft
guides guides
Linear plain bearings with Japanese dimensions Low-cost linear plain bearings made from iglidur J260
®
made from iglidur J4
®
c
Order key Order key
dn
d2
d1
1,5 x 30° Type Size B d1 Type Size
d2
B1 B c
s

Closed iglidur ® J4 Japan standard Precision Standard Inner Ø d1 B d1 Closed iglidur ® J260 Grooved Metric Compact Inner Ø d1
d2

®
®
● Alternative to ball bearings with Japanese dimension 78) According to igus testing method u Page 260 ● 2 variations: RJ260M (with plain design) and 78) According to igus testing method u Page 260
● Quickly assembled 82) Design tips u Page 186 RJ260UM (grooved structure) 82) Design tips u Page 186
● Secured by circlips Please note: Installation instructions u Page 187 Please note: Installation instructions u Page 187
Material properties u Page 772
Min. -20°C Min. -20°C
Max. +60°C Max. +60°C

Dimensions [mm] Dimensions [mm]

d1 d2 B B1 Øs dn Part No. d1 d2 B C Part No.

8 15 24 17.5 1.1 14.3 RJ4JP-01-08 12 19 28 1.5 x 15° RJ260UM-02-12
10 19 29 22.0 1.3 18.0 RJ4JP-01-10 16 24 30 1.5 x 15° RJ260UM-02-16
12 21 30 23.0 1.3 20.0 RJ4JP-01-12 20 28 30 2.0 x 15° RJ260UM-02-20
16 28 37 26.5 1.6 26.6 RJ4JP-01-16 25 35 40 2.0 x 15° RJ260UM-02-25
20 32 42 30.5 1.6 30.3 RJ4JP-01-20
25 40 59 41.1 1.85 37.5 RJ4JP-01-25
30 45 64 44.6 1.85 42.5 RJ4JP-01-30

Technical data Technical data
Part No. d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight Part No. d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight
p = 5MPa p = 35MPa p = 2.5MPa p = 17.5MPa
[mm] [N] [N] [g] [mm] [N] [N] [g]
RJ4JP-01-08 +0.000 +0.040 200 800 2 RJ260UM-02-12 +0.035 +0.080 420 2,940 6.2
RJ4JP-01-10 +0.000 +0.040 300 1,200 6 RJ260UM-02-16 +0.035 +0.080 600 4,200 9.7
RJ4JP-01-12 +0.000 +0.040 400 1,600 8 RJ260UM-02-20 +0.040 +0.095 750 5,250 11.7
RJ4JP-01-16 +0.000 +0.040 700 2,800 16 RJ260UM-02-25 +0.040 +0.095 1,250 8,750 22.8
RJ4JP-01-20 +0.000 +0.040 1,000 4,000 23
RJ4JP-01-25 +0.000 +0.050 1,550 6,500 47
RJ4JP-01-30 +0.000 +0.050 2,200 8,500 72

ASEAN 09/2023 ASEAN 09/2023

214 Online tools and more information u www.igus-asean.com/drylinR 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR 215
