drylin R drylin R
®
®
®
®

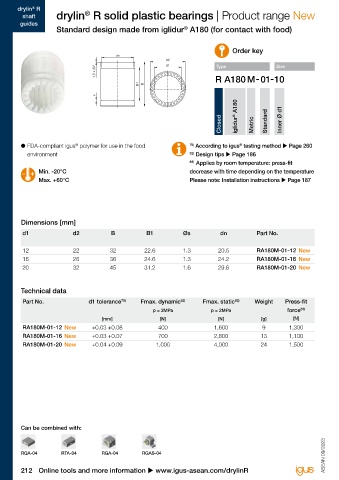

shaft drylin R solid plastic bearings | Product range New drylin R solid plastic bearings | Product rangeNew shaft
guides guides
Standard design made from iglidur A180 (for contact with food) Standard design made from iglidur A160 (for contact with food),
®
®
visually detectable
Order key Order key
dn dn
d2 d2
d1
d1
1,5 x 30° Type Size 1,5 x 30° Type Size
B1 B B1 B

s s

Closed iglidur ® A180 Metric Standard Inner Ø d1 Closed iglidur ® A160 Metric Standard Inner Ø d1

®
®
®
®
● FDA-compliant igus polymer for use in the food 78) According to igus testing method u Page 260 ● FDA-compliant igus polymer for use in the food 78) According to igus testing method u Page 260
environment 82) Design tips u Page 186 environment 82) Design tips u Page 186
83) Applies by room temperature: press-fit 83) Applies by room temperature: press-fit
Min. -20°C decrease with time depending on the temperature Min. -20°C decrease with time depending on the temperature
Max. +60°C Please note: Installation instructions u Page 187 Max. +60°C Please note: Installation instructions u Page 187

Dimensions [mm] Dimensions [mm]
d1 d2 B B1 Øs dn Part No. d1 d2 B B1 Øs dn Part No.

12 22 32 22.6 1.3 20.5 RA180M-01-12 New 12 22 32 22.6 1.3 20.5 RA160M-01-12 New
16 26 36 24.6 1.3 24.2 RA180M-01-16 New 16 26 36 24.6 1.3 24.2 RA160M-01-16 New
20 32 45 31.2 1.6 29.6 RA180M-01-20 New 20 32 45 31.2 1.6 29.6 RA160M-01-20 New

Technical data Technical data
Part No. d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight Press-fit Part No. d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight Press-fit
p = 2MPa p = 2MPa force 83) p = 2MPa p = 2MPa force 83)
[mm] [N] [N] [g] [N] [mm] [N] [N] [g] [N]
RA180M-01-12 New +0.03 +0.08 400 1,600 9 1,300 RA160M-01-12 New +0.03 +0.08 400 1,600 9 1,300
RA180M-01-16 New +0.03 +0.07 700 2,800 13 1,100 RA160M-01-16 New +0.03 +0.07 700 2,800 13 1,100
RA180M-01-20 New +0.04 +0.09 1,000 4,000 24 1,500 RA160M-01-20 New +0.04 +0.09 1,000 4,000 24 1,500

Can be combined with: Can be combined with:

ASEAN 09/2023 ASEAN 09/2023

RQA-04 RTA-04 RGA-04 RGAS-04 RQA-04 RTA-04 RGA-04 RGAS-04

212 Online tools and more information u www.igus-asean.com/drylinR 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR 213
