drylin R drylin R
®
®
®
®
shaft drylin R solid plastic bearings | Product range drylin R solid plastic bearings | Product range shaft
guides guides

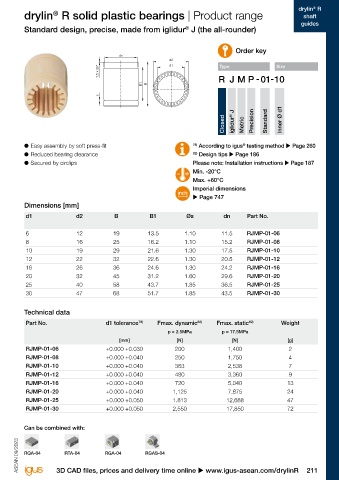

Standard design made from iglidur J (the all-rounder) Standard design, precise, made from iglidur J (the all-rounder)
®
®
Order key Order key
dn dn
d2 d2
d1
d1
1,5 x 30° Type Size 1,5 x 30° Type Size
B1 B B1 B

s s

Closed iglidur ® J Metric Standard Inner Ø d1 Closed iglidur ® J Metric Precision Standard Inner Ø d1

®
®
● Assembly by press-fitting 78) According to igus testing method u Page 260 ● Easy assembly by soft press-fit 78) According to igus testing method u Page 260
● Secured by circlips 82) Design tips u Page 186 ● Reduced bearing clearance 82) Design tips u Page 186
83) Applies by room temperature: press-fit decrease ● Secured by circlips Please note: Installation instructions u Page 187
Min. -20°C with time depending on the temperature Min. -20°C
Max. +60°C Please note: Installation instructions u Page 187 Max. +60°C
Imperial dimensions Imperial dimensions
u Page 747 u Page 747
Dimensions [mm] Dimensions [mm]

d1 d2 B B1 Øs dn Part No. d1 d2 B B1 Øs dn Part No.

8 16 25 16.2 1.10 15.2 RJM-01-08 6 12 19 13.5 1.10 11.5 RJMP-01-06
10 19 29 21.6 1.30 17.5 RJM-01-10 8 16 25 16.2 1.10 15.2 RJMP-01-08
12 22 32 22.6 1.30 20.5 RJM-01-12 10 19 29 21.6 1.30 17.5 RJMP-01-10
16 26 36 24.6 1.30 24.2 RJM-01-16 12 22 32 22.6 1.30 20.5 RJMP-01-12
20 32 45 31.2 1.60 29.6 RJM-01-20 16 26 36 24.6 1.30 24.2 RJMP-01-16
25 40 58 43.7 1.85 36.5 RJM-01-25 20 32 45 31.2 1.60 29.6 RJMP-01-20
30 47 68 51.7 1.85 43.5 RJM-01-30 25 40 58 43.7 1.85 36.5 RJMP-01-25
40 62 80 60.3 2.15 57.8 RJM-01-40 30 47 68 51.7 1.85 43.5 RJMP-01-30

Technical data Technical data
Part No. d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight Press-fit Part No. d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight
p = 2.5MPa p = 17.5MPa force 83) p = 2.5MPa p = 17.5MPa
[mm] [N] [N] [g] [N] [mm] [N] [N] [g]
RJM-01-08 +0.025 +0.061 250 1,750 4 400 RJMP-01-06 +0.000 +0.030 200 1,400 2
RJM-01-10 +0.025 +0.061 363 2,538 7 700 RJMP-01-08 +0.000 +0.040 250 1,750 4
RJM-01-12 +0.032 +0.075 480 3,360 9 1,300 RJMP-01-10 +0.000 +0.040 363 2,538 7
RJM-01-16 +0.032 +0.075 720 5,040 13 1,100 RJMP-01-12 +0.000 +0.040 480 3,360 9
RJM-01-20 +0.040 +0.092 1,125 7,875 24 1,500 RJMP-01-16 +0.000 +0.040 720 5,040 13
RJM-01-25 +0.040 +0.092 1.813 12,688 47 3,500 RJMP-01-20 +0.000 +0.040 1,125 7,875 24
RJM-01-30 +0.040 +0.092 2,550 17,850 72 4,500 RJMP-01-25 +0.000 +0.050 1.813 12,688 47
RJM-01-40 +0.050 +0.112 4,000 28,000 127 4,200 RJMP-01-30 +0.000 +0.050 2,550 17,850 72

Can be combined with: Can be combined with:

ASEAN 09/2023 ASEAN 09/2023

RQA-04 RTA-04 RGA-04 RGAS-04 RQA-04 RTA-04 RGA-04 RGAS-04

210 Online tools and more information u www.igus-asean.com/drylinR 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR 211
