drylin R drylin R
®
®
®
®

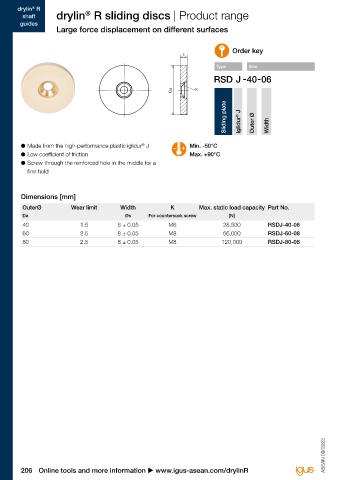

shaft drylin R sliding discs | Product range drylin R clip in | Product range shaft
guides guides
Large force displacement on different surfaces Clip-on liners
Order key Order key
s
b1
Type Size Type Size
b
t

Da K d3 d2 d1

Sliding plate iglidur ® J Outer Ø Width iglidur ® J Liner Clip-on Metric Inner Ø d1 Outer Ø d2 Length b

®
®
● Made from the high-performance plastic iglidur J Min. -50°C ● Quick installation by hand for sheet thicknesses of 78) According to igus testing method u Page 260
● Low coefficient of friction Max. +90°C 12 to 30mm 82) Design tips u Page 186
● Screw through the reinforced hole in the middle for a ● No locating spigot required Please note: Installation instructions u Page 187
firm hold Min. -50°C
Max. +90°C

Dimensions [mm] Dimensions [mm]

OuterØ Wear limit Width K Max. static load capacity Part No. d1 d2 d3 b b1 t Part No.
Da Øs For countersunk screw [N] +0.05 / +0.25
40 1.5 6 ± 0.05 M6 28,500 RSDJ-40-06 12 16 20 16 20.5 0.8 JUCM-1216-16
60 2.5 8 ± 0.05 M8 66,000 RSDJ-60-08 14 18 22 18 22.5 0.8 JUCM-1418-18
80 2.5 8 ± 0.05 M8 120,000 RSDJ-80-08 15 17 22 15 18.0 0.8 JUCM-1517-15
16 20 25 20 24.5 0.8 JUCM-1620-20
18 22 26 20 24.5 0.8 JUCM-1822-20
20 24 30 25 30.0 1.0 JUCM-2024-25
22 27 34 27 32.0 1.0 JUCM-2227-27
22 27 32 34 39.5 1.0 JUCM-2227-34
25 29 35 30 35.5 1.0 JUCM-2529-30
30 34 40 30 35.0 1.2 JUCM-3034-30

Technical data

Part No. d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight
p = 5MPa p = 35MPa
[mm] [N] [N] [g]
JUCM-1216-16 +0.04 +0.10 320 1,600 2.5
JUCM-1418-18 +0.04 +0.10 440 2,200 2.9
JUCM-1517-15 +0.04 +0.10 380 1,900 1.4
JUCM-1620-20 +0.04 +0.10 560 2,800 3.9
JUCM-1822-20 +0.04 +0.10 630 3,150 4.2
JUCM-2024-25 +0.04 +0.12 880 4,400 5.8
JUCM-2227-27 +0.04 +0.12 1,000 5,000 9.4
JUCM-2227-34 +0.04 +0.12 1,300 6,500 10.3
JUCM-2529-30 +0.04 +0.12 1,300 6,500 8.6
JUCM-3034-30 +0.04 +0.12 1,500 7,500 10.0
ASEAN 09/2023 ASEAN 09/2023

206 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR 207
206 Online tools and more information u www.igus-asean.com/drylinR
