drylin  R                                                                                                                                                                                                                 drylin  R
            ®
                                                                                                                                                                                                                                      ®
                                                                                                                                           ®
                               ®
         shaft       drylin  R liners | Product range New                                                                        drylin  R liners | Product range New                                                              shaft
        guides                                                                                                                                                                                                                    guides

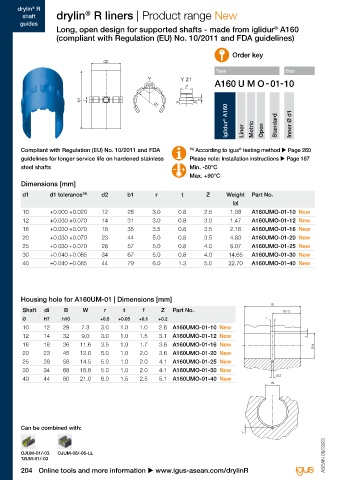

                     Long, open design for supported shafts - made from iglidur  A160                                            Short, closed design for round shafts - made from iglidur  A160
                                                                                                                                                                                                          ®
                                                                                                 ®
                     (compliant with Regulation (EU) No. 10/2011 and FDA guidelines)                                             (compliant with Regulation (EU) No. 10/2011 and FDA guidelines)
                                                                                   Order key                                                                  d2                                           Order key
                                     d2
                                                                             Type                    Size                                                                     Y          Y 2:1       Type                 Size
                                                     Y          Y 2:1                                                                                                                     Z
                                                                  Z
                                                                                                                                                                                               t
                                                                                                                                                      b1  r
                                                                                                                                                                               d1
                             b1  r                                      t
                                                       d1
                                                                                 iglidur ®  A160  Liner  Metric  Open  Standard  Inner Ø d1                                                              iglidur ®  A160  Liner  Metric  Compact  Inner Ø d1





        Compliant with Regulation (EU) No. 10/2011 and FDA          78)  According to igus  testing method u Page 260            Compliant with Regulation (EU) No. 10/2011 and FDA         78)  According to igus  testing method u Page 260
                                                                                                                                                                                                             ®
                                                                                     ®
        guidelines for longer service life on hardened stainless    Please note: Installation instructions u Page 187            guidelines for longer service life on hardened stainless   Please note: Installation instructions u Page 187
        steel shafts                                                Min. -50°C                                                   steel shafts                                               Min. -50°C
                                                                    Max. +90°C                                                                                                              Max. +90°C
        Dimensions [mm]                                                                                                          Dimensions [mm]

         d1        d1 tolerance 78)  d2       b1        r        t        Z      Weight  Part No.                                d1        d1 tolerance 78)  d2       b1        r        t        Z       Weight   Part No.
                                                                                   [g]                                                                                                                      [g]
         10        +0.000 +0.020     12       28       3.0      0.8      2.5      1.08   A160UMO-01-10 New                       10        +0.030 +0.070     12       25       3.0      0.8      2.5       1.02    A160UM-02-10 New
         12        +0.030 +0.070     14       31       3.0      0.8      3.0      1.47   A160UMO-01-12 New                       12        +0.030 +0.070     14       27       3.0      0.8      3.0       1.27    A160UM-02-12 New
         16        +0.030 +0.070     18       35       3.5      0.8      3.5      2.16   A160UMO-01-16 New                       16        +0.030 +0.070     18       29       3.5      0.8      3.5       1.82    A160UM-02-16 New
         20        +0.030 +0.070     23       44       5.0      0.8      3.5      4.80   A160UMO-01-20 New                       20        +0.030 +0.070     23       29       5.0      0.8      3.5       3.27    A160UM-02-20 New
         25        +0.030 +0.070     28       57       5.0      0.8      4.0      8.07   A160UMO-01-25 New                       25        +0.030 +0.070     28       39       5.0      0.8      4.0       5.75    A160UM-02-25 New
         30        +0.040 +0.085     34       67       5.0      0.8      4.0     14.65   A160UMO-01-30 New                       30        +0.040 +0.085     34       49       5.0      0.8      4.0      11.28    A160UM-02-30 New
         40        +0.040 +0.085     44       79       6.0      1.3      5.0     22.70   A160UMO-01-40 New                       40        +0.040 +0.085     44       59       6.0      1.3      5.0      17.94    A160UM-02-40 New
                                                                                                                                 50        +0.050 +0.150     55       69       7.0      1.3      6.0      32.56    A160UM-02-50 New




        Housing hole for A160UM-01 | Dimensions [mm]                                                                             Housing hole for A160UM-02 | Dimensions [mm]
                                                                                                B                                                                                                                        B
         Shaft   di     B     W       r     t      f      Z   Part No.                               B / 2                       Shaft    di      B       r       t       f       Z    Part No.                              B / 2
         Ø      H7     h10          +0.5   +0.05  +0.1   +0.2                                  r                                 Ø        H7     h10     +0.05   +0.1    +0.5    +0.2                                      Ø Z
         10     12     29     7.3   3.0    1.0    1.0    2.6  A160UMO-01-10 New                                                  10       12      26     3.0     1.0     1.0     2.6   A160UM-02-10 New
                                                                                                                                                                                                                                     f
         12     14     32     9.0   3.0    1.0    1.5    3.1  A160UMO-01-12 New                              t                   12       14      28     3.0     1.0     1.5     3.1   A160UM-02-12 New
         16     18     36    11.6   3.5    1.0    1.7    3.6  A160UMO-01-16 New                                Ø di              16       18      30     3.5     1.0     1.7     3.6   A160UM-02-16 New
         20     23     45    12.0   5.0    1.0    2.0    3.6  A160UMO-01-20 New                                                  20       23      30     5.0     1.0     2.0     3.6   A160UM-02-20 New                                Ø di
         25     28     58    14.5   5.0    1.0    2.0    4.1  A160UMO-01-25 New                                                  25       28      40     5.0     1.0     2.0     4.1   A160UM-02-25 New
         30     34     68    16.6   5.0    1.0    2.0    4.1  A160UMO-01-30 New                                                  30       34      50     5.0     1.0     2.0     4.1   A160UM-02-30 New                              t
         40     44     80    21.0   6.0    1.5    2.5    5.1  A160UMO-01-40 New                   Ø Z                            40       44      60     6.0     1.5     2.5     5.1   A160UM-02-40 New
                                                                                                W
                                                                                                                                 50       55      70     7.0     1.5     2.5     6.1   A160UM-02-50 New
                                                                                                                                                                                                                           r





        Can be combined with:                                                                                                    Can be combined with:
                                                                                       f
                                                                                                                   ASEAN 09/2023  ASEAN 09/2023

        OJUM-01/-03  OJUM-06/-06-LL                                                                                              RJUM-02     RJUM-05/RJUME-05 FJUMT-01/-02
        TJUM-01/-03                                                                                                                          TJUM-05/RJUMT-05
        204 Online tools and more information u www.igus-asean.com/drylinR                                                                  3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR              205
