drylin R drylin R
®
®
®
®

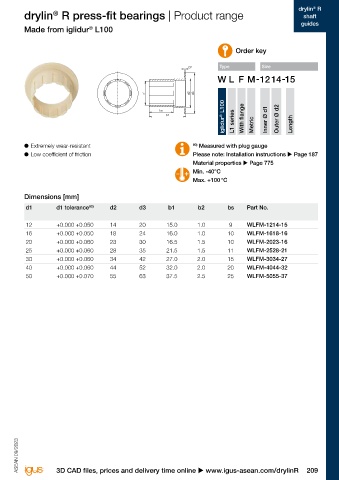

shaft drylin R press-fit bearings | Product range drylin R press-fit bearings | Product range shaft
guides guides
Made from iglidur L100 Made from iglidur L100
®
®
Order key Order key

Type Size b2 Type Size

d1 d2 d1 d2 d3
iglidur ® L100 iglidur ® L100

bs bs b1
b1 L1 series Metric Inner Ø d1 Outer Ø d2 Length L1 series With flange Metric Inner Ø d1 Outer Ø d2 Length

● Extremely wear-resistant 80) Measured with plug gauge ● Extremely wear-resistant 80) Measured with plug gauge
● Low coefficient of friction Please note: Installation instructions u Page 187 ● Low coefficient of friction Please note: Installation instructions u Page 187
Material properties u Page 775 Material properties u Page 775
Min. -40°C Min. -40°C
Max. +100 °C Max. +100 °C

Dimensions [mm] Dimensions [mm]

d1 d1 tolerance 80) d2 b1 bs Part No. d1 d1 tolerance 80) d2 d3 b1 b2 bs Part No.

6 +0.000 +0.040 8 10 6 WLM-0608-10 12 +0.000 +0.050 14 20 15.0 1.0 9 WLFM-1214-15
8 +0.000 +0.050 10 12 8 WLM-0810-12 16 +0.000 +0.050 18 24 16.0 1.0 10 WLFM-1618-16
10 +0.000 +0.050 12 14.5 10 WLM-1012-14 20 +0.000 +0.060 23 30 16.5 1.5 10 WLFM-2023-16
10 +0.000 +0.050 12 16 10 WLM-1012-16 25 +0.000 +0.060 28 35 21.5 1.5 11 WLFM-2528-21
12 +0.000 +0.050 14 16 10 WLM-1214-16 30 +0.000 +0.060 34 42 27.0 2.0 15 WLFM-3034-27
12 +0.000 +0.050 14 25 15 WLM-1214-25 40 +0.000 +0.060 44 52 32.0 2.0 20 WLFM-4044-32
16 +0.000 +0.050 18 18 10 WLM-1618-18 50 +0.000 +0.070 55 63 37.5 2.5 25 WLFM-5055-37
16 +0.000 +0.050 18 26 16 WLM-1618-26
20 +0.000 +0.060 23 22.5 12.5 WLM-2023-22
20 +0.000 +0.060 23 30 20 WLM-2023-30
22 +0.000 +0.060 25 30 20 WLM-2225-30
25 +0.000 +0.060 28 29 19 WLM-2528-29
25 +0.000 +0.060 28 35 25 WLM-2528-35
30 +0.000 +0.060 34 34 24 WLM-3034-34
30 +0.000 +0.060 34 40 30 WLM-3034-40
40 +0.000 +0.060 44 40 30 WLM-4044-40
40 +0.000 +0.060 44 50 40 WLM-4044-50
50 +0.000 +0.070 55 50 40 WLM-5055-50
50 +0.000 +0.070 55 60 50 WLM-5055-60

ASEAN 09/2023 ASEAN 09/2023

208 Online tools and more information u www.igus-asean.com/drylinR 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR 209
