drylin  R                                                                                                                                                                                                                 drylin  R
            ®
                                                                                                                                                                                                                                      ®
                                                                                                                                           ®
                               ®

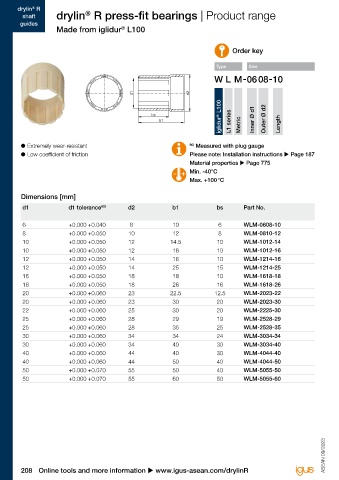

         shaft       drylin  R press-fit bearings | Product range                                                                drylin  R press-fit bearings | Product range                                                      shaft
        guides                                                                                                                                                                                                                    guides
                     Made from iglidur  L100                                                                                     Made from iglidur  L100
                                            ®
                                                                                                                                                       ®
                                                                                   Order key                                                                                                               Order key

                                                                             Type       Size                                                                                              b2         Type           Size




                                                d1                 d2                                                                                                      d1              d2  d3
                                                                               iglidur ®  L100                                                                                                         iglidur ®  L100

                                                      bs                                                                                                                        bs  b1
                                                         b1                       L1 series  Metric  Inner Ø d1  Outer Ø d2  Length                                                                       L1 series  With flange  Metric  Inner Ø d1  Outer Ø d2  Length



        ● 	Extremely wear-resistant                                 80)  Measured with plug gauge                                ● 	Extremely wear-resistant                                80)  Measured with plug gauge
        ● 	Low coefficient of friction                              Please note: Installation instructions u Page 187            ● 	Low coefficient of friction                             Please note: Installation instructions u Page 187
                                                                    Material properties u Page 775                                                                                          Material properties u Page 775
                                                                    Min. -40°C                                                                                                              Min. -40°C
                                                                    Max. +100 °C                                                                                                            Max. +100 °C

        Dimensions [mm]                                                                                                          Dimensions [mm]

         d1              d1 tolerance 80)     d2              b1             bs        Part No.                                  d1         d1 tolerance 80)   d2        d3        b1         b2        bs     Part No.

         6               +0.000 +0.040         8              10              6        WLM-0608-10                               12         +0.000 +0.050      14        20       15.0       1.0         9     WLFM-1214-15
         8               +0.000 +0.050        10              12              8        WLM-0810-12                               16         +0.000 +0.050      18        24       16.0       1.0        10     WLFM-1618-16
         10              +0.000 +0.050        12             14.5            10        WLM-1012-14                               20         +0.000 +0.060      23        30       16.5       1.5        10     WLFM-2023-16
         10              +0.000 +0.050        12              16             10        WLM-1012-16                               25         +0.000 +0.060      28        35       21.5       1.5        11     WLFM-2528-21
         12              +0.000 +0.050        14              16             10        WLM-1214-16                               30         +0.000 +0.060      34        42       27.0       2.0        15     WLFM-3034-27
         12              +0.000 +0.050        14              25             15        WLM-1214-25                               40         +0.000 +0.060      44        52       32.0       2.0        20     WLFM-4044-32
         16              +0.000 +0.050        18              18             10        WLM-1618-18                               50         +0.000 +0.070      55        63       37.5       2.5        25     WLFM-5055-37
         16              +0.000 +0.050        18              26             16        WLM-1618-26
         20              +0.000 +0.060        23             22.5           12.5       WLM-2023-22
         20              +0.000 +0.060        23              30             20        WLM-2023-30
         22              +0.000 +0.060        25              30             20        WLM-2225-30
         25              +0.000 +0.060        28              29             19        WLM-2528-29
         25              +0.000 +0.060        28              35             25        WLM-2528-35
         30              +0.000 +0.060        34              34             24        WLM-3034-34
         30              +0.000 +0.060        34              40             30        WLM-3034-40
         40              +0.000 +0.060        44              40             30        WLM-4044-40
         40              +0.000 +0.060        44              50             40        WLM-4044-50
         50              +0.000 +0.070        55              50             40        WLM-5055-50
         50              +0.000 +0.070        55              60             50        WLM-5055-60












                                                                                                                   ASEAN 09/2023  ASEAN 09/2023




        208 Online tools and more information u www.igus-asean.com/drylinR                                                                  3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR              209
