drylin R drylin R
®
®
®
®
shaft drylin R liners | Product range drylin R liners | Product range shaft
guides guides

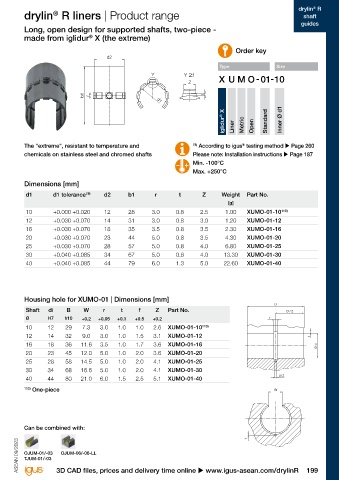

Long, closed design for shafts, two-piece - Long, open design for supported shafts, two-piece -
made from iglidur X (the extreme) made from iglidur X (the extreme)
®
®
Order key Order key
d2 d2
Type Size Type Size
Y Y 2:1
Y Y 2:1
Z Z

t
b1 r b1 r t
d1
d1
iglidur ® X Liner Metric Standard Inner Ø d1 iglidur ® X Liner Metric Open Standard Inner Ø d1

The "extreme", resistant to temperature and 78) According to igus testing method u Page 260 The "extreme", resistant to temperature and 78) According to igus testing method u Page 260
®
®
chemicals on stainless steel and chromed shafts Please note: Installation instructions u Page 187 chemicals on stainless steel and chromed shafts Please note: Installation instructions u Page 187
Min. -100°C Min. -100°C
Max. +250°C Max. +250°C
Dimensions [mm] Dimensions [mm]

d1 d1 tolerance 78) d2 b1 r t Z Weight Part No. d1 d1 tolerance 78) d2 b1 r t Z Weight Part No.
[g] [g]
12 +0.030 +0.070 14 31 3.0 0.8 3.0 1.50 XUM-01-12 10 +0.000 +0.020 12 28 3.0 0.8 2.5 1.00 XUMO-01-10 110)
14 +0.030 +0.070 18 35 3.5 0.8 3.5 2.13 XUM-01-14 12 +0.030 +0.070 14 31 3.0 0.8 3.0 1.20 XUMO-01-12
16 +0.030 +0.070 18 35 3.5 0.8 3.5 2.20 XUM-01-16 16 +0.030 +0.070 18 35 3.5 0.8 3.5 2.30 XUMO-01-16
20 +0.030 +0.070 23 44 5.0 0.8 3.5 4.90 XUM-01-20 20 +0.030 +0.070 23 44 5.0 0.8 3.5 4.30 XUMO-01-20
25 +0.040 +0.085 28 57 5.0 0.8 4.0 8.23 XUM-01-25 25 +0.030 +0.070 28 57 5.0 0.8 4.0 6.80 XUMO-01-25
30 +0.040 +0.085 34 67 5.0 0.8 4.0 14.95 XUM-01-30 30 +0.040 +0.085 34 67 5.0 0.8 4.0 13.30 XUMO-01-30
40 +0.025 +0.125 44 79 6.0 1.3 5.0 23.16 XUM-01-40 40 +0.040 +0.085 44 79 6.0 1.3 5.0 22.60 XUMO-01-40

Housing hole for XUM-01 | Dimensions [mm] Housing hole for XUMO-01 | Dimensions [mm]
B B
Shaft di B r t f Z Part No. B / 2 Shaft di B W r t f Z Part No. B / 2
Ø H7 h10 +0,05 +0,1 +0,5 +0,2 Ø Z Ø H7 h10 +0.2 +0.05 +0.1 +0.5 +0.2 r
12 14 32 3.0 1.0 1.5 3.1 XUM-01-12 f 10 12 29 7.3 3.0 1.0 1.0 2.6 XUMO-01-10 110)
14 16 30 3.5 1.0 1.7 3.6 XUM-01-14 12 14 32 9.0 3.0 1.0 1.5 3.1 XUMO-01-12 t
16 18 36 3.5 1.0 1.7 3.6 XUM-01-16 16 18 36 11.6 3.5 1.0 1.7 3.6 XUMO-01-16 Ø di
20 23 45 5.0 1.0 2.0 3.6 XUM-01-20 Ø di 20 23 45 12.0 5.0 1.0 2.0 3.6 XUMO-01-20
25 28 58 5.0 1.0 2.0 4.1 XUM-01-25 t 25 28 58 14.5 5.0 1.0 2.0 4.1 XUMO-01-25
30 34 68 5.0 1.0 2.0 4.1 XUM-01-30 30 34 68 16.6 5.0 1.0 2.0 4.1 XUMO-01-30
Ø Z
40 44 80 6.0 1.5 2.5 5.1 XUM-01-40 40 44 80 21.0 6.0 1.5 2.5 5.1 XUMO-01-40
r
110) One-piece W

Can be combined with: Can be combined with: f

ASEAN 09/2023 ASEAN 09/2023

RJUM-01/-03 RJUM-06/-06-LL FJUM-01/-02 OJUM-01/-03 OJUM-06/-06-LL
TJUM-01/-03 TJUM-01/-03
198 Online tools and more information u www.igus-asean.com/drylinR 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR 199
