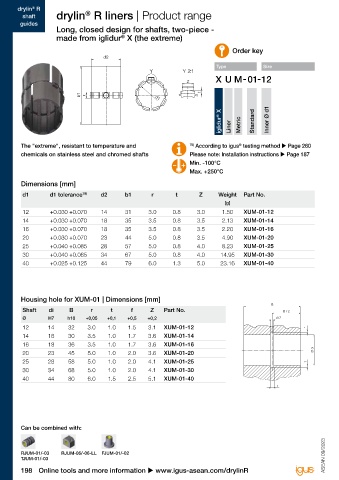

drylin  R                                                                                                                                                                                                                 drylin  R
            ®
                                                                                                                                                                                                                                      ®
                               ®
                                                                                                                                           ®
         shaft       drylin  R liners | Product range                                                                            drylin  R liners | Product range                                                                  shaft
        guides                                                                                                                                                                                                                    guides
                     Long, closed design for shafts, two-piece -                                                                 Long, open design for supported shafts, two-piece -
                     made from iglidur  X (the extreme)                                                                          made from iglidur  X (the extreme)
                                            ®
                                                                                                                                                       ®
                                                                                   Order key                                                                                                               Order key
                                     d2                                                                                                                       d2
                                                                             Type            Size                                                                                                    Type                Size
                                                      Y          Y 2:1
                                                                                                                                                                             Y           Y 2:1
                                                                   Z                                                                                                                      Z

                                                                        t
                             b1  r                                                                                                                   b1  r                                      t
                                                       d1
                                                                                                                                                                               d1
                                                                               iglidur ®  X  Liner  Metric  Standard  Inner Ø d1                                                                       iglidur ®  X  Liner  Metric  Open  Standard  Inner Ø d1





        The "extreme", resistant to temperature and                 78)  According to igus  testing method u Page 260            The "extreme", resistant to temperature and                78)  According to igus  testing method u Page 260
                                                                                                                                                                                                             ®
                                                                                     ®
        chemicals on stainless steel and chromed shafts             Please note: Installation instructions u Page 187            chemicals on stainless steel and chromed shafts            Please note: Installation instructions u Page 187
                                                                    Min. -100°C                                                                                                             Min. -100°C
                                                                    Max. +250°C                                                                                                             Max. +250°C
        Dimensions [mm]                                                                                                          Dimensions [mm]

         d1        d1 tolerance 78)  d2      b1       r        t       Z      Weight   Part No.                                  d1        d1 tolerance 78)  d2      b1       r        t       Z      Weight   Part No.
                                                                                [g]                                                                                                                     [g]
         12        +0.030 +0.070    14       31      3.0      0.8     3.0      1.50    XUM-01-12                                 10        +0.000 +0.020     12      28      3.0      0.8     2.5      1.00    XUMO-01-10  110)
         14        +0.030 +0.070    18       35      3.5      0.8     3.5      2.13    XUM-01-14                                 12        +0.030 +0.070     14      31      3.0      0.8     3.0      1.20    XUMO-01-12
         16        +0.030 +0.070    18       35      3.5      0.8     3.5      2.20    XUM-01-16                                 16        +0.030 +0.070     18      35      3.5      0.8     3.5      2.30    XUMO-01-16
         20        +0.030 +0.070    23       44      5.0      0.8     3.5      4.90    XUM-01-20                                 20        +0.030 +0.070     23      44      5.0      0.8     3.5      4.30    XUMO-01-20
         25        +0.040 +0.085    28       57      5.0      0.8     4.0      8.23    XUM-01-25                                 25        +0.030 +0.070     28      57      5.0      0.8     4.0      6.80    XUMO-01-25
         30        +0.040 +0.085    34       67      5.0      0.8     4.0     14.95    XUM-01-30                                 30        +0.040 +0.085     34      67      5.0      0.8     4.0      13.30   XUMO-01-30
         40        +0.025 +0.125    44       79      6.0      1.3     5.0     23.16    XUM-01-40                                 40        +0.040 +0.085     44      79      6.0      1.3     5.0      22.60   XUMO-01-40






        Housing hole for XUM-01 | Dimensions [mm]                                                                                Housing hole for XUMO-01 | Dimensions [mm]
                                                                                                B                                                                                                                        B
         Shaft    di     B       r      t      f      Z    Part No.                                 B / 2                        Shaft   di    B     W      r      t     f     Z   Part No.                                  B / 2
         Ø        H7     h10   +0,05   +0,1   +0,5   +0,2                                         Ø Z                            Ø       H7    h10   +0.2  +0.05  +0.1  +0.5  +0.2                                     r
         12       14     32     3.0    1.0    1.5    3.1   XUM-01-12                                         f                   10      12    29    7.3   3.0   1.0    1.0   2.6  XUMO-01-10  110)
         14       16     30     3.5    1.0    1.7    3.6   XUM-01-14                                                             12      14    32    9.0   3.0   1.0    1.5   3.1  XUMO-01-12                                        t
         16       18     36     3.5    1.0    1.7    3.6   XUM-01-16                                                             16      18    36   11.6   3.5   1.0    1.7   3.6  XUMO-01-16                                          Ø di
         20       23     45     5.0    1.0    2.0    3.6   XUM-01-20                                           Ø di              20      23    45   12.0   5.0   1.0    2.0   3.6  XUMO-01-20
         25       28     58     5.0    1.0    2.0    4.1   XUM-01-25                                         t                   25      28    58   14.5   5.0   1.0    2.0   4.1  XUMO-01-25
         30       34     68     5.0    1.0    2.0    4.1   XUM-01-30                                                             30      34    68   16.6   5.0   1.0    2.0   4.1  XUMO-01-30
                                                                                                                                                                                                                          Ø Z
         40       44     80     6.0    1.5    2.5    5.1   XUM-01-40                                                             40      44    80   21.0   6.0   1.5    2.5   5.1  XUMO-01-40
                                                                                                  r
                                                                                                                                 110)  One-piece                                                                        W






        Can be combined with:                                                                                                    Can be combined with:                                                         f

                                                                                                                   ASEAN 09/2023  ASEAN 09/2023

        RJUM-01/-03    RJUM-06/-06-LL  FJUM-01/-02                                                                               OJUM-01/-03  OJUM-06/-06-LL
        TJUM-01/-03                                                                                                              TJUM-01/-03
