drylin  R                                                                                                                                                                                                                 drylin  R
            ®
                                                                                                                                                                                                                                      ®
                               ®
                                                                                                                                           ®
         shaft       drylin  R liners | Product range                                                                            drylin  R liners | Product range                                                                  shaft
        guides                                                                                                                                                                                                                    guides

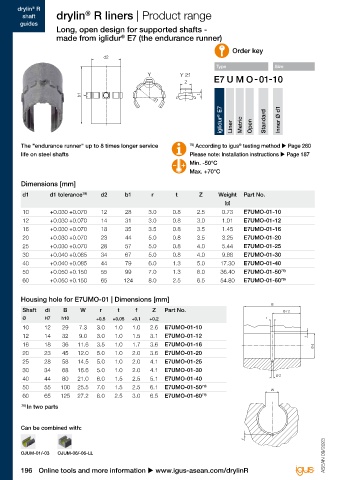

                     Long, open design for supported shafts -                                                                    Short, closed design for shafts -
                     made from iglidur  E7 (the endurance runner)                                                                made from iglidur  E7 (the endurance runner)
                                            ®
                                                                                                                                                       ®
                                                                                   Order key                                                                                                               Order key
                                     d2                                                                                                                       d2
                                                                             Type                Size                                                                         Y           Y 2:1      Type             Size
                                                     Y          Y 2:1                                                                                                                      Z
                                                                  Z
                                                                                                                                                     b1  r                                      t
                             b1  r                                     t                                                                                                        d1
                                                       d1
                                                                               iglidur ®  E7  Liner  Metric  Open  Standard  Inner Ø d1                                                                iglidur ®  E7  Liner  Metric  Compact  Inner Ø d1






                                                                                     ®
                                                                                                                                                                                                             ®
        The "endurance runner" up to 8 times longer service         78)  According to igus  testing method u Page 260            The "endurance runner" up to 8 times longer service        78)  According to igus  testing method u Page 260
        life on steel shafts                                        Please note: Installation instructions u Page 187            life on steel shafts                                       Please note: Installation instructions u Page 187
                                                                    Min. -50°C                                                                                                              Min. -50°C
                                                                    Max. +70°C                                                                                                              Max. +70°C
        Dimensions [mm]                                                                                                          Dimensions [mm]

         d1        d1 tolerance 78)  d2      b1       r        t       Z      Weight   Part No.                                  d1        d1 tolerance 78)  d2      b1       r        t       Z      Weight   Part No.
                                                                                [g]                                                                                                                     [g]
         10        +0.030 +0.070    12       28      3.0      0.8     2.5      0.73    E7UMO-01-10                               10        +0.030 +0.070     12      25      3.0      0.8     2.5      0.73    E7UM-02-10
         12        +0.030 +0.070    14       31      3.0      0.8     3.0      1.01    E7UMO-01-12                               12        +0.030 +0.070     14      27      3.0      0.8     3.0      1.01    E7UM-02-12
         16        +0.030 +0.070    18       35      3.5      0.8     3.5      1.45    E7UMO-01-16                               16        +0.030 +0.070     18      29      3.5      0.8     3.5      1.45    E7UM-02-16
         20        +0.030 +0.070    23       44      5.0      0.8     3.5      3.25    E7UMO-01-20                               20        +0.030 +0.070     23      29      5.0      0.8     3.5      3.25    E7UM-02-20
         25        +0.030 +0.070    28       57      5.0      0.8     4.0      5.44    E7UMO-01-25                               25        +0.030 +0.070     28      39      5.0      0.8     4.0      5.44    E7UM-02-25
         30        +0.040 +0.085    34       67      5.0      0.8     4.0      9.88    E7UMO-01-30                               30        +0.040 +0.085     34      49      5.0      0.8     4.0      9.88    E7UM-02-30
         40        +0.040 +0.085    44       79      6.0      1.3     5.0     17.30    E7UMO-01-40                               40        +0.040 +0.085     44      59      6.0      1.3     5.0      17.30   E7UM-02-40
         50        +0.050 +0.150    55       99      7.0      1.3     6.0     36.40    E7UMO-01-50  79)
         60        +0.050 +0.150    65      124      8.0      2.5     6.5     54.80    E7UMO-01-60  79)


        Housing hole for E7UMO-01 | Dimensions [mm]                                                                              Housing hole for E7UM-02 | Dimensions [mm]
                                                                                                B                                                                                                                        B
         Shaft   di    B     W      r     t      f     Z   Part No.                                  B / 2                       Shaft    di      B      r      t      f      Z    Part No.                                  B / 2
         Ø       H7    h10         +0.5  +0.05  +0.1  +0.2                                    r                                  Ø        H7     h10   +0.05   +0.1   +0.5   +0.2                                         Ø Z
         10      12    29    7.3   3.0   1.0    1.0   2.6  E7UMO-01-10                                                           10       12     26     3.0    1.0    1.0     2.6  E7UM-02-10                                        f
         12      14    32    9.0   3.0   1.0    1.5   3.1  E7UMO-01-12                                       t                   12       14     28     3.0    1.0    1.5     3.1  E7UM-02-12
         16      18    36   11.6   3.5   1.0    1.7   3.6  E7UMO-01-16                                         Ø di              16       18     30     3.5    1.0    1.7     3.6  E7UM-02-16
         20      23    45   12.0   5.0   1.0    2.0   3.6  E7UMO-01-20                                                           20       23     30     5.0    1.0    2.0     3.6  E7UM-02-20                                          Ø di
         25      28    58   14.5   5.0   1.0    2.0   4.1  E7UMO-01-25                                                           25       28     40     5.0    1.0    2.0     4.1  E7UM-02-25                                        t
         30      34    68   16.6   5.0   1.0    2.0   4.1  E7UMO-01-30                                                           30       34     50     5.0    1.0    2.0     4.1  E7UM-02-30
         40      44    80   21.0   6.0   1.5    2.5   5.1  E7UMO-01-40                            Ø Z                            40       44     60     6.0    1.5    2.5     5.1  E7UM-02-40
         50      55   100   25.5   7.0   1.5    2.5   6.1  E7UMO-01-50  79)                     W                                                                                                                          r
         60      65   125   27.2   8.0   2.5    3.0   6.5  E7UMO-01-60  79)
         79)  In two parts



        Can be combined with:                                                                                                    Can be combined with:

                                                                                                                   ASEAN 09/2023  ASEAN 09/2023  TJUM-05/RJUMT-05
                                                                                       f
        OJUM-01/-03  OJUM-06/-06-LL                                                                                              RJUM-02       RJUM-05/RJUME-05 FJUMT-01/-02

        196 Online tools and more information u www.igus-asean.com/drylinR                                                                  3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR              197
