P. 203

drylin  R
                                                                                                                                                                                                                                      ®
                                                                                                                                           ®
                               ®
       drylin  R     drylin  R liners | Product range                                                                            drylin  R liners | Product range
            ®
                                                                                                                                                                                                                                   shaft
      shaft guides                                                                                                                                                                                                                guides

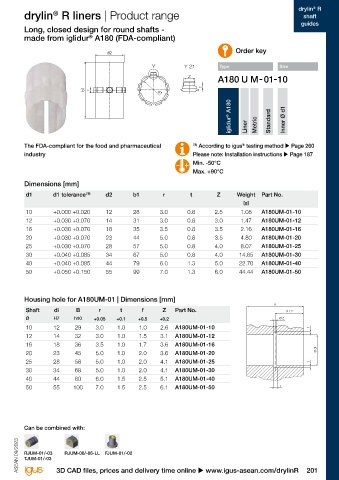

                     Short, closed design for shafts, two-piece -                                                                Long, closed design for round shafts -
                     made from iglidur  X (the extreme)                                                                          made from iglidur  A180 (FDA-compliant)
                                            ®
                                                                                                                                                       ®
                                                                                   Order key                                                                  d2                                           Order key
                                      d2
                                                      Y          Y 2:1       Type            Size                                                                            Y           Y 2:1       Type                 Size
                                                                  Z                                                                                                                       Z

                             b1  r                                     t                                                                              b1  r                                    t
                                                        d1                                                                                                                     d1


                                                                               iglidur ®  X  Liner  Metric  Compact  Inner Ø d1                                                                          iglidur ®  A180  Liner  Metric  Standard  Inner Ø d1





                                                                                     ®
        The "extreme", resistant to temperature and                 78)  According to igus  testing method u Page 260            The FDA-compliant for the food and pharmaceutical          78)  According to igus  testing method u Page 260
                                                                                                                                                                                                             ®
        chemicals on stainless steel and chromed shafts             Please note: Installation instructions u Page 187            industry                                                   Please note: Installation instructions u Page 187
                                                                    Min. -100°C                                                                                                             Min. -50°C
                                                                    Max. +250°C                                                                                                             Max. +90°C
        Dimensions [mm]                                                                                                          Dimensions [mm]

         d1        d1 tolerance 78)  d2      b1       r        t       Z      Weight   Part No.                                  d1        d1 tolerance 78)  d2        b1        r         t        Z      Weight   Part No.
                                                                                [g]                                                                                                                           [g]
         12        +0.030 +0.070    14       27      3.0      0.8     3.0       1.3    XUM-02-12                                 10        +0.000 +0.020     12        28       3.0       0.8      2.5       1.08   A180UM-01-10
         16        +0.030 +0.070    18       29      3.5      0.8     3.5       2.5    XUM-02-16                                 12        +0.030 +0.070     14        31       3.0       0.8      3.0       1.47   A180UM-01-12
         20        +0.030 +0.070    23       29      5.0      0.8     3.5       3.4    XUM-02-20                                 16        +0.030 +0.070     18        35       3.5       0.8      3.5       2.16   A180UM-01-16
         25        +0.030 +0.070    28       39      5.0      0.8     4.0       5.6    XUM-02-25                                 20        +0.030 +0.070     23        44       5.0       0.8      3.5       4.80   A180UM-01-20
         30        +0.040 +0.085    34       49      5.0      0.8     4.0      12.0    XUM-02-30                                 25        +0.030 +0.070     28        57       5.0       0.8      4.0       8.07   A180UM-01-25
         40        +0.040 +0.085    44       59      6.0      1.3     5.0      20.0    XUM-02-40                                 30        +0.040 +0.085     34        67       5.0       0.8      4.0      14.65   A180UM-01-30
                                                                                                                                 40        +0.040 +0.085     44        79       6.0       1.3       5.0     22.70   A180UM-01-40
                                                                                                                                 50        +0.050 +0.150     55        99       7.0       1.3       6.0     44.44   A180UM-01-50




        Housing hole for XUM-02 | Dimensions [mm]                                                                                Housing hole for A180UM-01 | Dimensions [mm]
                                                                                                 B                                                                                                                      B
         Shaft     di     B       r      t       f      Z    Part No.                               B / 2                        Shaft     di      B       r      t       f      Z    Part No.                               B / 2
         Ø        H7     h10    +0.05   +0.1   +0.5    +0.2                                        Ø Z                           Ø         H7     h10    +0.05   +0.1    +0.5   +0.2                                      Ø Z
         12       14      28     3.0    1.0     1.5    3.1   XUM-02-12                                                           10        12     29      3.0    1.0     1.0    2.6   A180UM-01-10                                   f
                                                                                                            f
         16       18      30     3.5    1.0     1.7    3.6   XUM-02-16                                                           12        14     32      3.0    1.0     1.5    3.1   A180UM-01-12
         20       23      30     5.0    1.0     2.0    3.6   XUM-02-20                                                           16        18     36      3.5    1.0     1.7    3.6   A180UM-01-16
         25       28      40     5.0    1.0     2.0    4.1   XUM-02-25                                         Ø di              20        23     45      5.0    1.0     2.0    3.6   A180UM-01-20                                     Ø di
         30       34      50     5.0    1.0     2.0    4.1   XUM-02-30                                                           25        28     58      5.0    1.0     2.0    4.1   A180UM-01-25                                   t
         40       44      60     6.0    1.5     2.5    5.1   XUM-02-40                                      t                    30        34     68      5.0    1.0     2.0    4.1   A180UM-01-30
                                                                                                                                 40        44     80      6.0    1.5     2.5    5.1   A180UM-01-40
                                                                                                                                 50        55     100     7.0    1.5     2.5    6.1   A180UM-01-50                        r
                                                                                                   r





        Can be combined with:                                                                                                    Can be combined with:

                                                                                                                   ASEAN 09/2023  ASEAN 09/2023

        RJUM-02        RJUM-01-ES    RJUM-05/RJUME-05 FJUMT-01/-02                                                               RJUM-01/-03   RJUM-06/-06-LL  FJUM-01/-02
                                     TJUM-05/RJUMT-05                                                                            TJUM-01/-03
        200 Online tools and more information u www.igus-asean.com/drylinR
        200                                                                                                                                 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR              201
