drylin R
®
®
®
drylin R drylin R liners | Product range drylin R liners | Product range
®
shaft
shaft guides guides

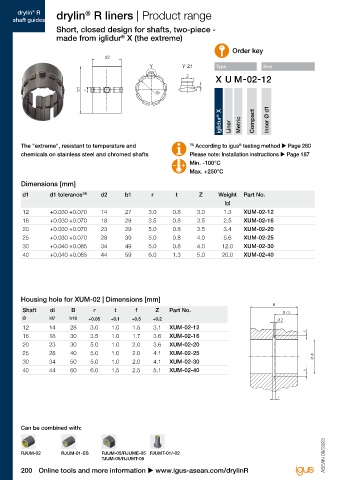

Short, closed design for shafts, two-piece - Long, closed design for round shafts -
made from iglidur X (the extreme) made from iglidur A180 (FDA-compliant)
®
®
Order key d2 Order key
d2
Y Y 2:1 Type Size Y Y 2:1 Type Size
Z Z

b1 r t b1 r t
d1 d1

iglidur ® X Liner Metric Compact Inner Ø d1 iglidur ® A180 Liner Metric Standard Inner Ø d1

®
The "extreme", resistant to temperature and 78) According to igus testing method u Page 260 The FDA-compliant for the food and pharmaceutical 78) According to igus testing method u Page 260
®
chemicals on stainless steel and chromed shafts Please note: Installation instructions u Page 187 industry Please note: Installation instructions u Page 187
Min. -100°C Min. -50°C
Max. +250°C Max. +90°C
Dimensions [mm] Dimensions [mm]

d1 d1 tolerance 78) d2 b1 r t Z Weight Part No. d1 d1 tolerance 78) d2 b1 r t Z Weight Part No.
[g] [g]
12 +0.030 +0.070 14 27 3.0 0.8 3.0 1.3 XUM-02-12 10 +0.000 +0.020 12 28 3.0 0.8 2.5 1.08 A180UM-01-10
16 +0.030 +0.070 18 29 3.5 0.8 3.5 2.5 XUM-02-16 12 +0.030 +0.070 14 31 3.0 0.8 3.0 1.47 A180UM-01-12
20 +0.030 +0.070 23 29 5.0 0.8 3.5 3.4 XUM-02-20 16 +0.030 +0.070 18 35 3.5 0.8 3.5 2.16 A180UM-01-16
25 +0.030 +0.070 28 39 5.0 0.8 4.0 5.6 XUM-02-25 20 +0.030 +0.070 23 44 5.0 0.8 3.5 4.80 A180UM-01-20
30 +0.040 +0.085 34 49 5.0 0.8 4.0 12.0 XUM-02-30 25 +0.030 +0.070 28 57 5.0 0.8 4.0 8.07 A180UM-01-25
40 +0.040 +0.085 44 59 6.0 1.3 5.0 20.0 XUM-02-40 30 +0.040 +0.085 34 67 5.0 0.8 4.0 14.65 A180UM-01-30
40 +0.040 +0.085 44 79 6.0 1.3 5.0 22.70 A180UM-01-40
50 +0.050 +0.150 55 99 7.0 1.3 6.0 44.44 A180UM-01-50

Housing hole for XUM-02 | Dimensions [mm] Housing hole for A180UM-01 | Dimensions [mm]
B B
Shaft di B r t f Z Part No. B / 2 Shaft di B r t f Z Part No. B / 2
Ø H7 h10 +0.05 +0.1 +0.5 +0.2 Ø Z Ø H7 h10 +0.05 +0.1 +0.5 +0.2 Ø Z
12 14 28 3.0 1.0 1.5 3.1 XUM-02-12 10 12 29 3.0 1.0 1.0 2.6 A180UM-01-10 f
f
16 18 30 3.5 1.0 1.7 3.6 XUM-02-16 12 14 32 3.0 1.0 1.5 3.1 A180UM-01-12
20 23 30 5.0 1.0 2.0 3.6 XUM-02-20 16 18 36 3.5 1.0 1.7 3.6 A180UM-01-16
25 28 40 5.0 1.0 2.0 4.1 XUM-02-25 Ø di 20 23 45 5.0 1.0 2.0 3.6 A180UM-01-20 Ø di
30 34 50 5.0 1.0 2.0 4.1 XUM-02-30 25 28 58 5.0 1.0 2.0 4.1 A180UM-01-25 t
40 44 60 6.0 1.5 2.5 5.1 XUM-02-40 t 30 34 68 5.0 1.0 2.0 4.1 A180UM-01-30
40 44 80 6.0 1.5 2.5 5.1 A180UM-01-40
50 55 100 7.0 1.5 2.5 6.1 A180UM-01-50 r
r

Can be combined with: Can be combined with:

ASEAN 09/2023 ASEAN 09/2023

RJUM-02 RJUM-01-ES RJUM-05/RJUME-05 FJUMT-01/-02 RJUM-01/-03 RJUM-06/-06-LL FJUM-01/-02
TJUM-05/RJUMT-05 TJUM-01/-03
200 Online tools and more information u www.igus-asean.com/drylinR
200 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR 201
