drylin R drylin R
®
®
®
®
shaft drylin R liners | Product range drylin R liners | Product range shaft
guides guides

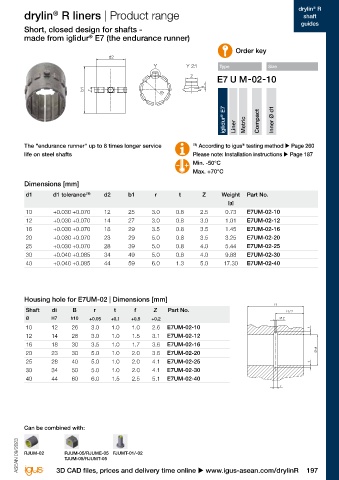

Long, open design for supported shafts - Short, closed design for shafts -
made from iglidur E7 (the endurance runner) made from iglidur E7 (the endurance runner)
®
®
Order key Order key
d2 d2
Type Size Y Y 2:1 Type Size
Y Y 2:1 Z
Z
b1 r t
b1 r t d1
d1
iglidur ® E7 Liner Metric Open Standard Inner Ø d1 iglidur ® E7 Liner Metric Compact Inner Ø d1

®
®
The "endurance runner" up to 8 times longer service 78) According to igus testing method u Page 260 The "endurance runner" up to 8 times longer service 78) According to igus testing method u Page 260
life on steel shafts Please note: Installation instructions u Page 187 life on steel shafts Please note: Installation instructions u Page 187
Min. -50°C Min. -50°C
Max. +70°C Max. +70°C
Dimensions [mm] Dimensions [mm]

d1 d1 tolerance 78) d2 b1 r t Z Weight Part No. d1 d1 tolerance 78) d2 b1 r t Z Weight Part No.
[g] [g]
10 +0.030 +0.070 12 28 3.0 0.8 2.5 0.73 E7UMO-01-10 10 +0.030 +0.070 12 25 3.0 0.8 2.5 0.73 E7UM-02-10
12 +0.030 +0.070 14 31 3.0 0.8 3.0 1.01 E7UMO-01-12 12 +0.030 +0.070 14 27 3.0 0.8 3.0 1.01 E7UM-02-12
16 +0.030 +0.070 18 35 3.5 0.8 3.5 1.45 E7UMO-01-16 16 +0.030 +0.070 18 29 3.5 0.8 3.5 1.45 E7UM-02-16
20 +0.030 +0.070 23 44 5.0 0.8 3.5 3.25 E7UMO-01-20 20 +0.030 +0.070 23 29 5.0 0.8 3.5 3.25 E7UM-02-20
25 +0.030 +0.070 28 57 5.0 0.8 4.0 5.44 E7UMO-01-25 25 +0.030 +0.070 28 39 5.0 0.8 4.0 5.44 E7UM-02-25
30 +0.040 +0.085 34 67 5.0 0.8 4.0 9.88 E7UMO-01-30 30 +0.040 +0.085 34 49 5.0 0.8 4.0 9.88 E7UM-02-30
40 +0.040 +0.085 44 79 6.0 1.3 5.0 17.30 E7UMO-01-40 40 +0.040 +0.085 44 59 6.0 1.3 5.0 17.30 E7UM-02-40
50 +0.050 +0.150 55 99 7.0 1.3 6.0 36.40 E7UMO-01-50 79)
60 +0.050 +0.150 65 124 8.0 2.5 6.5 54.80 E7UMO-01-60 79)

Housing hole for E7UMO-01 | Dimensions [mm] Housing hole for E7UM-02 | Dimensions [mm]
B B
Shaft di B W r t f Z Part No. B / 2 Shaft di B r t f Z Part No. B / 2
Ø H7 h10 +0.5 +0.05 +0.1 +0.2 r Ø H7 h10 +0.05 +0.1 +0.5 +0.2 Ø Z
10 12 29 7.3 3.0 1.0 1.0 2.6 E7UMO-01-10 10 12 26 3.0 1.0 1.0 2.6 E7UM-02-10 f
12 14 32 9.0 3.0 1.0 1.5 3.1 E7UMO-01-12 t 12 14 28 3.0 1.0 1.5 3.1 E7UM-02-12
16 18 36 11.6 3.5 1.0 1.7 3.6 E7UMO-01-16 Ø di 16 18 30 3.5 1.0 1.7 3.6 E7UM-02-16
20 23 45 12.0 5.0 1.0 2.0 3.6 E7UMO-01-20 20 23 30 5.0 1.0 2.0 3.6 E7UM-02-20 Ø di
25 28 58 14.5 5.0 1.0 2.0 4.1 E7UMO-01-25 25 28 40 5.0 1.0 2.0 4.1 E7UM-02-25 t
30 34 68 16.6 5.0 1.0 2.0 4.1 E7UMO-01-30 30 34 50 5.0 1.0 2.0 4.1 E7UM-02-30
40 44 80 21.0 6.0 1.5 2.5 5.1 E7UMO-01-40 Ø Z 40 44 60 6.0 1.5 2.5 5.1 E7UM-02-40
50 55 100 25.5 7.0 1.5 2.5 6.1 E7UMO-01-50 79) W r
60 65 125 27.2 8.0 2.5 3.0 6.5 E7UMO-01-60 79)
79) In two parts

Can be combined with: Can be combined with:

ASEAN 09/2023 ASEAN 09/2023 TJUM-05/RJUMT-05
f
OJUM-01/-03 OJUM-06/-06-LL RJUM-02 RJUM-05/RJUME-05 FJUMT-01/-02

196 Online tools and more information u www.igus-asean.com/drylinR 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR 197
