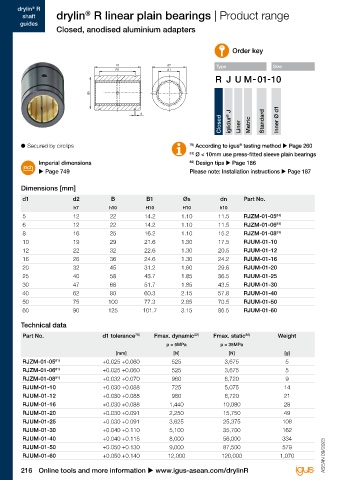

Page 218 - IGUS Linear

drylin R drylin R
®
®
®
®
shaft drylin R linear plain bearings | Product range drylin R linear plain bearings | Product range shaft
guides guides
Closed, anodised aluminium adapters Closed, anodised aluminium adapters, precise
Order key Order key

B d2 Type Size B d2 Type Size
B1 d1 B1 d1

dn dn

s s
Closed iglidur ® J Liner Metric Standard Inner Ø d1 Closed iglidur ® J Liner Metric Precision Inner Ø d1

®
®
● Secured by circlips 78) According to igus testing method u Page 260 ● Max. bearing clearance reduced by 50% 78) According to igus testing method u Page 260
81) Ø < 10mm use press-fitted sleeve plain bearings ● Secured by circlips 82) Design tips u Page 186
Imperial dimensions 82) Design tips u Page 186 Please note: Installation instructions u Page 187
u Page 749 Please note: Installation instructions u Page 187

Dimensions [mm] Dimensions [mm]

d1 d2 B B1 Øs dn Part No. d1 d2 B B1 Øs dn Part No.
h7 h10 H10 H10 h10 h7 h10 H10 H10 h10
5 12 22 14.2 1.10 11.5 RJZM-01-05 81) 10 19 29 21.6 1.30 17.5 RJUM-11-10
6 12 22 14.2 1.10 11.5 RJZM-01-06 81) 12 22 32 22.6 1.30 20.5 RJUM-11-12
8 16 25 16.2 1.10 15.2 RJZM-01-08 81) 16 26 36 24.6 1.30 24.2 RJUM-11-16
10 19 29 21.6 1.30 17.5 RJUM-01-10 20 32 45 31.2 1.60 29.6 RJUM-11-20
12 22 32 22.6 1.30 20.5 RJUM-01-12 25 40 58 43.7 1.85 36.5 RJUM-11-25
16 26 36 24.6 1.30 24.2 RJUM-01-16 30 47 68 51.7 1.85 43.5 RJUM-11-30
20 32 45 31.2 1.60 29.6 RJUM-01-20 40 62 80 60.3 2.15 57.8 RJUM-11-40
25 40 58 43.7 1.85 36.5 RJUM-01-25 50 75 100 77.3 2.65 70.5 RJUM-11-50
30 47 68 51.7 1.85 43.5 RJUM-01-30
40 62 80 60.3 2.15 57.8 RJUM-01-40
50 75 100 77.3 2.65 70.5 RJUM-01-50
60 90 125 101.7 3.15 86.5 RJUM-01-60 Technical data

Technical data Part No. d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight
p = 5MPa p = 35MPa
Part No. d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight
[mm] [N] [N] [g]
p = 5MPa p = 35MPa
RJUM-11-10 +0.000 +0.058 725 5,075 14
[mm] [N] [N] [g] RJUM-11-12 +0.000 +0.058 960 6,720 21
RJZM-01-05 81) +0.025 +0.060 525 3,675 5 RJUM-11-16 +0.000 +0.058 1,440 10,080 28
RJZM-01-06 81) +0.025 +0.060 525 3,675 5 RJUM-11-20 +0.000 +0.061 2,250 15,750 49
RJZM-01-08 81) +0.032 +0.070 960 6,720 9 RJUM-11-25 +0.000 +0.061 3,625 25,375 108
RJUM-01-10 +0.030 +0.088 725 5,075 14 RJUM-11-30 +0.000 +0.075 5,100 35,700 162
RJUM-01-12 +0.030 +0.088 960 6,720 21 RJUM-11-40 +0.000 +0.080 8,000 56,000 334
RJUM-01-16 +0.030 +0.088 1,440 10,080 28 RJUM-11-50 +0.000 +0.090 12,500 87,500 579
RJUM-01-20 +0.030 +0.091 2,250 15,750 49
RJUM-01-25 +0.030 +0.091 3,625 25,375 108
®
RJUM-01-30 +0.040 +0.110 5,100 35,700 162 Can be combined with: Available with drylin liners (optional: J200/A180):
RJUM-01-40 +0.040 +0.115 8,000 56,000 334
RJUM-01-50 +0.050 +0.130 9,000 87,500 579
RJUM-01-60 +0.050 +0.140 12,000 120,000 1,070 ASEAN 09/2023 ASEAN 09/2023 RQA-01 RTA-01 RGA-01 RGAS-01 J E7 X
