drylin  R                                                                                                                                                                                                                 drylin  R
            ®
                                                                                                                                                                                                                                      ®
                               ®
                                                                                                                                           ®

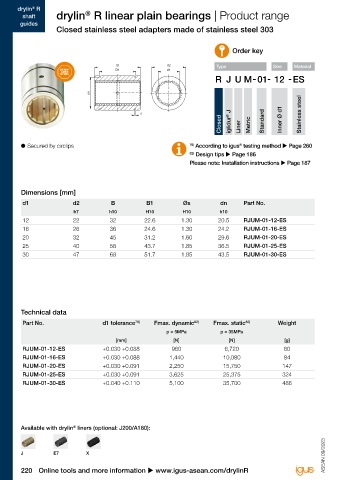

         shaft       drylin  R linear plain bearings | Product range                                                             drylin  R linear plain bearings | Product range                                                   shaft
        guides                                                                                                                                                                                                                    guides
                     Closed stainless steel adapters made of stainless steel 303                                                 Closed, anodised aluminium adapters with iglidur  E7 liner
                                                                                                                                                                                                ®
                                                                                   Order key                                                                                                               Order key


                                          B                 d2               Type                Size   Material                                                  B                 d2               Type                Size
                                          B1                d1                                                                                                    B1                d1



                                 dn                                                                                                                     dn


                                                  s                                                        Stainless steel                                                 s
                                                                               Closed  iglidur ®  J  Liner  Metric  Standard  Inner Ø d1                                                               Closed  iglidur ®  E7  Liner  Metric  Standard  Inner Ø d1




                                                                                                                                                                                                             ®
                                                                                     ®
        ● 	Secured by circlips                                      78)  According to igus  testing method u Page 260            ● 	Secured by circlips                                     78)  According to igus  testing method u Page 260
                                                                    82)  Design tips u Page 186                                                                                             82)  Design tips u Page 186
                                                                    Please note: Installation instructions u Page 187                                                                       Please note: Installation instructions u Page 187




        Dimensions [mm]                                                                                                          Dimensions [mm]

         d1                d2           B           B1           Øs           dn       Part No.                                  d1                d2           B            B1           Øs           dn      Part No.
                           h7          h10          H10          H10          h10                                                                  h7           h10         H10          H10          h10
         12                22           32          22.6         1.30         20.5     RJUM-01-12-ES                             10                19           29          21.6         1.30         17.5     RE7UM-01-10
         16                26           36          24.6         1.30         24.2     RJUM-01-16-ES                             12                22           32          22.6         1.30         20.5     RE7UM-01-12
         20                32           45          31.2         1.60         29.6     RJUM-01-20-ES                             16                26           36          24.6         1.30         24.2     RE7UM-01-16
         25                40           58          43.7         1.85         36.5     RJUM-01-25-ES                             20                32           45          31.2         1.60         29.6     RE7UM-01-20
         30                47           68          51.7         1.85         43.5     RJUM-01-30-ES                             25                40           58          43.7         1.85         36.5     RE7UM-01-25
                                                                                                                                 30                47           68          51.7         1.85         43.5     RE7UM-01-30
                                                                                                                                 40                62           80          60.3         2.15         57.8     RE7UM-01-40
                                                                                                                                 50                75          100          77.3         2.65         70.5     RE7UM-01-50
                                                                                                                                 60                90          125         101.7         3.15         86.5     RE7UM-01-60




        Technical data                                                                                                           Technical data
         Part No.                    d1 tolerance 78)  Fmax. dynamic 82)    Fmax. static 82)       Weight                        Part No.                    d1 tolerance  78)  Fmax. dynamic  82)  Fmax. static  82)      Weight
                                                           p = 5MPa           p = 35MPa                                                                                            p = 2.5MPa          p = 18MPa
                                          [mm]                [N]                [N]                 [g]                                                          [mm]                [N]                 [N]                [g]
         RJUM-01-12-ES               +0.030 +0.088           960                6,720                60                          RE7UM-01-10                 +0.030 +0.088            360               2,610                14
         RJUM-01-16-ES               +0.030 +0.088           1,440             10,080                84                          RE7UM-01-12                 +0.030 +0.088            480               3,450                21
         RJUM-01-20-ES               +0.030 +0.091           2,250             15,750               147                          RE7UM-01-16                 +0.030 +0.088            720               5,180                28
         RJUM-01-25-ES               +0.030 +0.091           3,625             25,375               324                          RE7UM-01-20                 +0.030 +0.091           1,120              8,100                49
         RJUM-01-30-ES               +0.040 +0.110           5,100             35,700               486                          RE7UM-01-25                 +0.030 +0.091           1,810              13,050              108
                                                                                                                                 RE7UM-01-30                 +0.040 +0.110           2,550              18,360              162
                                                                                                                                 RE7UM-01-40                 +0.040 +0.115           4,000              28,800              334
                                                                                                                                 RE7UM-01-50                 +0.050 +0.180           4,500              45,000              579
                                                                                                                                 RE7UM-01-60                 +0.050 +0.190           6,000              61,700              1,070
        Available with drylin  liners (optional: J200/A180):
                           ®
                                                                                                                   ASEAN 09/2023  ASEAN 09/2023

        J           E7         X
