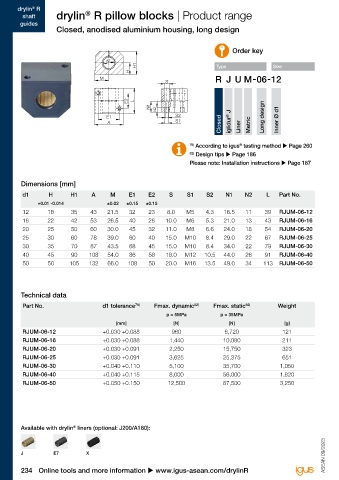

drylin R drylin R
®
®
®
®
shaft drylin R pillow blocks | Product range drylin R pillow blocks | Product range shaft
guides guides
Closed, anodised aluminium housing, long design Closed, anodised aluminium housing, long design
with manual clamp
S KL M KB S1 M KB
Order key KL S1 H Order key
H N1
d1 N2 N1 N2
H1 Type Size H1 ØS2 Type Size Version
H N1 N2 H1 ØS2
M S2 Ød1
S S1 ØS Ød1 ØS

L M KB
L KL
d1 E2 E2 S1
E2 L H1 H
H N1 N2 N2 N1
M E1 S2 Long design E1 E1 A H1 ØS2 Long design Manual clamp
A S1 Closed iglidur ® J Liner Metric Inner Ø d1 A Closed iglidur ® J ØS Liner Metric Ød1 Inner Ø d1

E2 L L
78) According to igus testing method u Page 260 E2 78) According to igus testing method u Page 260
®
®
E1 82) Design tips u Page 186 82) Design tips u Page 186
A
Please note: Installation instructions u Page 187 Please note: Installation instructions u Page 187
E1 A
Dimensions [mm] Dimensions [mm]

d1 H H1 A M E1 E2 S S1 S2 N1 N2 L Part No. d1 H H1 A M E1 E2 S S1 S2 N1 N2 W L KL KB Part No.
+0.01 -0.014 ±0.02 ±0.15 ±0.15 +0.01; -0.014 ±0.02 ±0.15 ±0.15 -1
12 18 35 43 21.5 32 23 8.0 M5 4.3 16.5 11 39 RJUM-06-12 12 18 35 43 21.5 32 23 8 M5 4.3 16.5 11 10.2 39 40 33 RJUM-06-12-HK
16 22 42 53 26.5 40 26 10.0 M6 5.3 21.0 13 43 RJUM-06-16 16 22 42 53 26.5 40 26 10 M6 5.3 21 13 11.6 43 40 33 RJUM-06-16-HK
20 25 50 60 30.0 45 32 11.0 M8 6.6 24.0 18 54 RJUM-06-20 20 25 50 60 30 45 32 11 M8 6.6 24 18 12 54 40 33 RJUM-06-20-HK
25 30 60 78 39.0 60 40 15.0 M10 8.4 29.0 22 67 RJUM-06-25 25 30 60 78 39 60 40 15 M10 8.4 29 22 14.5 67 65 46 RJUM-06-25-HK
30 35 70 87 43.5 68 45 15.0 M10 8.4 34.0 22 79 RJUM-06-30 30 35 70 87 43.5 68 45 15 M10 8.4 34 22 16.6 79 65 46 RJUM-06-30-HK
40 45 90 108 54.0 86 58 18.0 M12 10.5 44.0 26 91 RJUM-06-40 40 45 90 108 54 86 58 18 M12 10.5 44 26 21 91 65 46 RJUM-06-40-HK
50 50 105 132 66.0 108 50 20.0 M16 13.5 49.0 34 113 RJUM-06-50 50 50 105 132 66 108 50 20 M16 13.5 49 34 25.5 113 65 46 RJUM-06-50-HK

Technical data Technical data
Part No. d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Weight Part No. d1 tolerance 78) Fmax. dynamic 82) Fmax. static 82) Clamp force Weight
p = 5MPa p = 35MPa p = 5MPa p = 35MPa axial
[mm] [N] [N] [g] 0º 0º [N] [g]
RJUM-06-12 +0.030 +0.088 960 6,720 121 RJUM-06-12-HK +0.030 +0.088 960 6720 400 0.098
RJUM-06-16 +0.030 +0.088 1,440 10,080 211 RJUM-06-16-HK +0.030 +0.088 1440 10080 400 0.164
RJUM-06-20 +0.030 +0.091 2,250 15,750 323 RJUM-06-20-HK +0.030 +0.091 2250 15750 400 0.275
RJUM-06-25 +0.030 +0.091 3,625 25,375 651 RJUM-06-25-HK +0.030 +0.091 3625 25375 1,000 0.544
RJUM-06-30 +0.040 +0.110 5,100 35,700 1,050 RJUM-06-30-HK +0.040 +0.110 5100 35700 1,000 0.832
RJUM-06-40 +0.040 +0.115 8,000 56,000 1,820 RJUM-06-40-HK +0.040 +0.115 8000 56000 1,000 1.513
RJUM-06-50 +0.050 +0.150 12,500 87,500 3,250 RJUM-06-50-HK +0.050 +0.150 12500 87500 1,000 2.568

Available with drylin liners (optional: J200/A180): Available with drylin liners (optional: J200/A180):
®
®
ASEAN 09/2023 ASEAN 09/2023

J E7 X J E7 X

234 Online tools and more information u www.igus-asean.com/drylinR 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR 235
