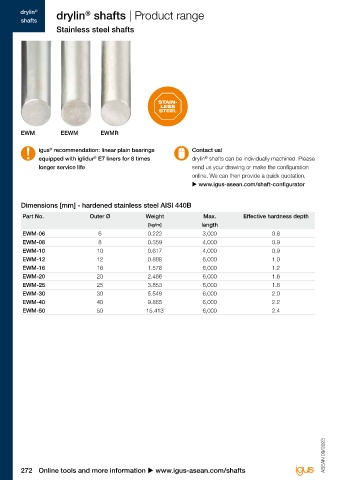

drylin drylin shafts | Product range drylin shafts | Product range drylin
®
®
®
®
shafts shafts
Stainless steel shafts Materials: AISI 440B, AISI 420C, AISI 304, AISI 316Ti
Order key

Type Size Options

Steel shaft Shaft length
EWM EEWM EWMR Metric Outer Ø [mm]

igus recommendation: linear plain bearings Contact us!
®
equipped with iglidur E7 liners for 8 times drylin shafts can be individually machined. Please Available shaft materials:
®
®
longer service life send us your drawing or make the configuration AISI 440B, hardened/ground u EWM
online. We can then provide a quick quotation. AISI 420C, hardened/ground u EEWM
u www.igus-asean.com/shaft-configurator AISI 304, drawn u EWMR
AISI 316Ti, drawn u EWMS
Dimensions [mm] - hardened stainless steel AISI 440B Dimensions [mm] - hardened stainless steel AISI 420C

Part No. Outer Ø Weight Max. Effective hardness depth Part No. Outer Ø Weight Max. Effective hardness depth
[kg/m] length [kg/m] length
EWM-06 6 0.222 3,000 0.8 EEWM-06 6 0.222 3,000 0.8
EWM-08 8 0.359 4,000 0.9 EEWM-08 8 0.359 4,000 0.9
EWM-10 10 0.617 4,000 0.9 EEWM-10 10 0.617 4,000 0.9
EWM-12 12 0.888 6,000 1.0 EEWM-12 12 0.888 6,000 1.0
EWM-16 16 1.578 6,000 1.2 EEWM-16 16 1.578 6,000 1.2
EWM-20 20 2.466 6,000 1.6 EEWM-20 20 2.466 6,000 1.6
EWM-25 25 3.853 6,000 1.8 EEWM-25 25 3.853 6,000 1.8
EWM-30 30 5.549 6,000 2.0 EEWM-30 30 5.549 6,000 2.0
EWM-40 40 9.865 6,000 2.2 EEWM-40 40 9.865 6,000 2.2
EWM-50 50 15.413 6,000 2.4 EEWM-50 50 15.413 6,000 2.4

Dimensions [mm] - stainless steel AISI 304 (EWMR) or AISI 316Ti soft stainless steel (EWMS)

Part No. Outer Ø Weight Max.
[kg/m] length
EWMR-06 EWMS-06 6 0.222 3,000
EWMR-08 EWMS-08 8 0.359 3,000
EWMR-10 EWMS-10 10 0.617 3,000
EWMR-12 EWMS-12 12 0.888 3,000
EWMR-16 EWMS-16 16 1.578 3,000
EWMR-20 EWMS-20 20 2.466 3,000
EWMR-25 EWMS-25 25 3.853 3,000
EWMR-30 EWMS-30 30 5.549 3,000
EWMR-40 EWMS-40 30 5.549 3,000
EWMR-50 30 5.549 3,000
ASEAN 09/2023 ASEAN 09/2023 Order example:

EWM-16-500: Stainless steel shaft (AISI 440B) with 16mm Ø, 500mm length

272 Online tools and more information u www.igus-asean.com/shafts 3D CAD files, prices and delivery time online u www.igus-asean.com/shafts 273
