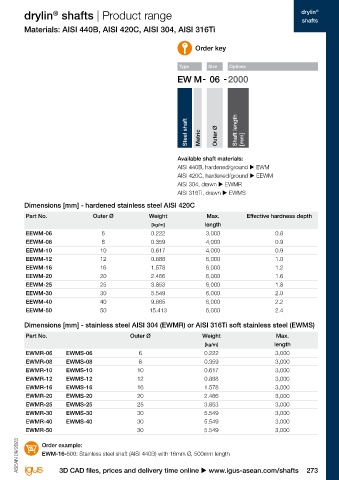

drylin       drylin  shafts | Product range                                                                              drylin  shafts | Product range                                                                   drylin
                                                                                                                                                                                                                                       ®
                                                                                                                                           ®
                               ®
             ®
        shafts                                                                                                                                                                                                                    shafts
                     Stainless steel shafts                                                                                      Materials: AISI 440B, AISI 420C, AISI 304, AISI 316Ti
                                                                                                                                                                                             Order key


                                                                                                                                                                                       Type      Size    Options










                                                                                                                                                                                          Steel shaft      Shaft length
        EWM           EEWM          EWMR                                                                                                                                                      Metric  Outer Ø  [mm]


               igus  recommendation: linear plain bearings          Contact us!
                  ®
               equipped with iglidur  E7 liners for 8 times         drylin  shafts can be individually machined. Please                                                               Available shaft materials:
                                  ®
                                                                         ®
               longer service life                                  send us your drawing or make the configuration                                                                    AISI 440B, hardened/ground u EWM
                                                                    online. We can then provide a quick quotation.                                                                    AISI 420C, hardened/ground u EEWM
                                                                    u www.igus-asean.com/shaft-configurator                                                                           AISI 304, drawn u EWMR
                                                                                                                                                                                      AISI 316Ti, drawn u EWMS
        Dimensions [mm] - hardened stainless steel AISI 440B                                                                     Dimensions [mm] - hardened stainless steel AISI 420C

         Part No.                Outer Ø            Weight              Max.          Effective hardness depth                   Part No.                Outer Ø            Weight               Max.          Effective hardness depth
                                                     [kg/m]             length                                                                                               [kg/m]             length
         EWM-06                     6                0.222              3,000                    0.8                             EEWM-06                    6                0.222              3,000                    0.8
         EWM-08                     8                0.359              4,000                    0.9                             EEWM-08                    8                0.359              4,000                    0.9
         EWM-10                    10                0.617              4,000                    0.9                             EEWM-10                   10                0.617              4,000                    0.9
         EWM-12                    12                0.888              6,000                    1.0                             EEWM-12                   12                0.888              6,000                    1.0
         EWM-16                    16                1.578              6,000                    1.2                             EEWM-16                   16                1.578              6,000                    1.2
         EWM-20                    20                2.466              6,000                    1.6                             EEWM-20                   20                2.466              6,000                    1.6
         EWM-25                    25                3.853              6,000                    1.8                             EEWM-25                   25                3.853              6,000                    1.8
         EWM-30                    30                5.549              6,000                    2.0                             EEWM-30                   30                5.549              6,000                    2.0
         EWM-40                    40                9.865              6,000                    2.2                             EEWM-40                   40                9.865              6,000                    2.2
         EWM-50                    50               15.413              6,000                    2.4                             EEWM-50                   50                15.413             6,000                    2.4

                                                                                                                                 Dimensions [mm] - stainless steel AISI 304 (EWMR) or AISI 316Ti soft stainless steel (EWMS)

                                                                                                                                 Part No.                             Outer Ø                  Weight                    Max.
                                                                                                                                                                                                [kg/m]                  length
                                                                                                                                 EWMR-06       EWMS-06                   6                      0.222                    3,000
                                                                                                                                 EWMR-08       EWMS-08                   8                      0.359                    3,000
                                                                                                                                 EWMR-10       EWMS-10                  10                      0.617                    3,000
                                                                                                                                 EWMR-12       EWMS-12                  12                      0.888                    3,000
                                                                                                                                 EWMR-16       EWMS-16                  16                      1.578                    3,000
                                                                                                                                 EWMR-20       EWMS-20                  20                      2.466                    3,000
                                                                                                                                 EWMR-25       EWMS-25                  25                      3.853                    3,000
                                                                                                                                 EWMR-30       EWMS-30                  30                      5.549                    3,000
                                                                                                                                 EWMR-40       EWMS-40                  30                      5.549                    3,000
                                                                                                                                 EWMR-50                                30                      5.549                    3,000
                                                                                                                   ASEAN 09/2023  ASEAN 09/2023  Order example:

                                                                                                                                       EWM-16-500: Stainless steel shaft (AISI 440B) with 16mm Ø, 500mm length

        272 Online tools and more information u www.igus-asean.com/shafts                                                                    3D CAD files, prices and delivery time online u www.igus-asean.com/shafts              273
