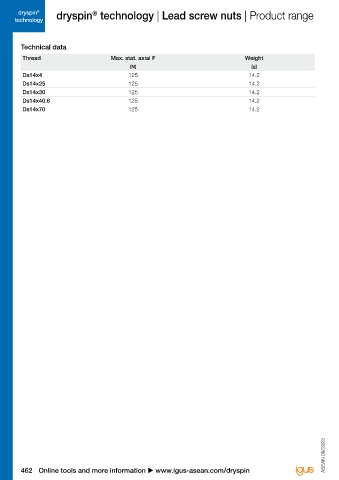

       dryspin       dryspin  technology | Lead screw nuts | Product range                                                                                                                                                       dryspin
              ®
                                                                                                                                                                                                                                        ®
      technology                                                                                                                                                                                                                technology

        Technical data                                                                                                           Dimensions [mm]

         Thread                         Max. stat. axial F                             Weight                                      d1 156)  d2 156)   d3       d4       d5      b1 156)    b2     Part No.
                                               [N]                                       [g]
         Ds14x4                               125                                       14.2                                        14       20      41.2     31.8      5.2     44.0       7.0    DST-JFRM-LC-0001-DS14X4         New
         Ds14x25                              125                                       14.2                                        14       20      41.2     31.8      5.2     44.0       7.0    DST-JFRM-LC-0001-DS14X25
         Ds14x30                              125                                       14.2                                        14       20      41.2     31.8      5.2     44.0       7.0    DST-JFRM-LC-0001-DS14X30
         Ds14x40.6                            125                                       14.2                                        14       20      41.2     31.8      5.2     44.0       7.0    DST-JFRM-LC-0001-DS14X40.6
         Ds14x70                              125                                       14.2                                        14       20      41.2     31.8      5.2     44.0       7.0    DST-JFRM-LC-0001-DS14X70        New

                                                                                                                                 156)  Tolerances according to DIN ISO 2768-1, tolerance class m (medium)




































































                                                                                                                   ASEAN 09/2023  ASEAN 09/2023




        462 Online tools and more information u www.igus-asean.com/dryspin                                                                 3D CAD files, prices and delivery time online u www.igus-asean.com/dryspin               463
