dryspin d2 dryspin technology | Lead screw nuts | Product range New dryspin
®
®
®
technology d1 technology
Pre-load lead screw nut with dryspin thread
®

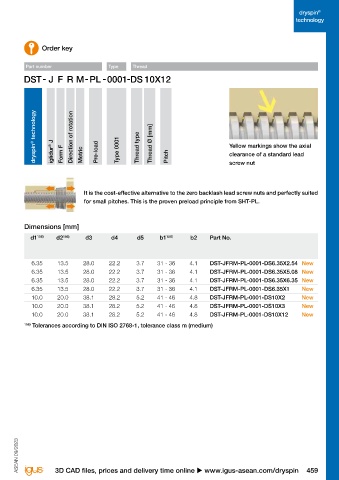

Order key
b1
Part number Type Thread

b2

d2
d1
d3
d4 Backlash is created on the lead screw drive by
dryspin ® technology
the axial clearance. By adding a radial pre-load,
vibrations are significantly reduced.
b1 Direction of rotation Thread type Thread Ø [mm] Yellow markings show the axial

d5
b2 iglidur ® J Form F Metric Pre-load Type 0001 Pitch clearance of a standard lead
screw nut

d3
d4 It is the cost-effective alternative to the zero backlash lead screw nuts and perfectly suited
for small pitches. This is the proven preload principle from SHT-PL.

Technical data Dimensions [mm]
Thread Max. stat. axial F Max. idling torque Weight d1 156) d2 156) d3 d4 d5 b1 156) b2 Part No.
d5
(with spring) from
[N] [Nm] [g]
DS6.35x2.54 30 0.10 5.1 6.35 13.5 28.0 22.2 3.7 31 - 36 4.1 DST-JFRM-PL-0001-DS6.35X2.54 New
DS6.35x5.08 30 0.10 5.1 6.35 13.5 28.0 22.2 3.7 31 - 36 4.1 DST-JFRM-PL-0001-DS6.35X5.08 New
DS6.35x6.35 30 0.10 5.1 6.35 13.5 28.0 22.2 3.7 31 - 36 4.1 DST-JFRM-PL-0001-DS6.35X6.35 New
DS6.35x1 30 0.10 5.1 6.35 13.5 28.0 22.2 3.7 31 - 36 4.1 DST-JFRM-PL-0001-DS6.35X1 New
DS10x2 40 0.10 22.0 10.0 20.0 38.1 28.2 5.2 41 - 46 4.8 DST-JFRM-PL-0001-DS10X2 New
DS10x3 40 0.10 22.0 10.0 20.0 38.1 28.2 5.2 41 - 46 4.8 DST-JFRM-PL-0001-DS10X3 New
DS10x12 35 0.10 22.0 10.0 20.0 38.1 28.2 5.2 41 - 46 4.8 DST-JFRM-PL-0001-DS10X12 New

156) Tolerances according to DIN ISO 2768-1, tolerance class m (medium)
