dryspin dryspin technology | Lead screw nuts | Product range dryspin
®
®
technology technology

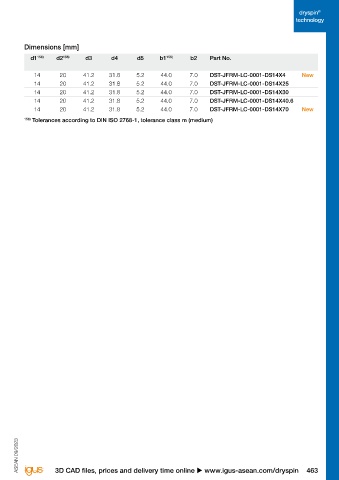

Technical data Dimensions [mm]

Thread Max. stat. axial F Weight d1 156) d2 156) d3 d4 d5 b1 156) b2 Part No.
[N] [g]
Ds14x4 125 14.2 14 20 41.2 31.8 5.2 44.0 7.0 DST-JFRM-LC-0001-DS14X4 New
Ds14x25 125 14.2 14 20 41.2 31.8 5.2 44.0 7.0 DST-JFRM-LC-0001-DS14X25
Ds14x30 125 14.2 14 20 41.2 31.8 5.2 44.0 7.0 DST-JFRM-LC-0001-DS14X30
Ds14x40.6 125 14.2 14 20 41.2 31.8 5.2 44.0 7.0 DST-JFRM-LC-0001-DS14X40.6
Ds14x70 125 14.2 14 20 41.2 31.8 5.2 44.0 7.0 DST-JFRM-LC-0001-DS14X70 New

156) Tolerances according to DIN ISO 2768-1, tolerance class m (medium)
