dryspin dryspin
®
®
®
®

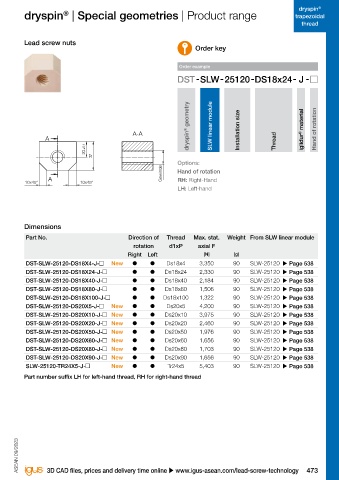

trapezoidal dryspin | Special geometries | Product range dryspin | Special geometries | Product range trapezoidal
thread thread
Lead screw nuts for linear modules
Lead screw nuts Lead screw nuts
Order key Order key

Order example Order example

DST-SLW-063001 SWZ-063009
dryspin ® geometry SLW linear module Installation size iglidur ® material Hand of rotation A-A dryspin ® geometry SLW linear module Installation size iglidur ® material Hand of rotation

18 18 15 15 Thread A 20 ±0,1 Thread
37
Options: Options:
12 12 d1 d1 Hand of rotation Gewinde Hand of rotation
3x45° 3x45° 5 5 RH: Right-Hand 10x45° A 10x45° RH: Right-Hand
LH: Left-hand
LH: Left-hand

48 ±0,2

Dimensions Dimensions 40 - 0,1
Part No. Direction of Thread Max. stat. Weight From SLW linear module Part No. Direction of Thread Max. stat. Weight From SLW linear module
rotation d1xP axial F rotation d1xP axial F
Right Left [N] [g] Right Left [N] [g]
DST-SLW-063001-DS8X8-J- New – Ds8x8 150 3.5 SLW-0630 u Page 538 DST-SLW-25120-DS18X4-J- New Ds18x4 3,350 90 SLW-25120 u Page 538
DST-SLW-063001-DS8X10- Ds8x10 130 3.5 SLW-0630 u Page 538 DST-SLW-25120-DS18X24-J- Ds18x24 2,330 90 SLW-25120 u Page 538
DST-SLW-063001-DS8X15- Ds8x15 140 3.5 SLW-0630 u Page 538 DST-SLW-25120-DS18X40-J- Ds18x40 2,184 90 SLW-25120 u Page 538
SLW-063001-M8-J- M8 165 3.5 SLW-0630 u Page 538 DST-SLW-25120-DS18X80-J- Ds18x80 1,506 90 SLW-25120 u Page 538
SLW-063001-TR8X1.5-J- Tr8x1.5 200 3.5 SLW-0630 u Page 538 DST-SLW-25120-DS18X100-J- Ds18x100 1,322 90 SLW-25120 u Page 538

Part number suffix LH for left-hand thread, RH for right-hand thread DST-SLW-25120-DS20X5-J- New Ds20x5 4,200 90 SLW-25120 u Page 538
Partly reduced axial loads due to the component geometry DST-SLW-25120-DS20X10-J- New Ds20x10 3,975 90 SLW-25120 u Page 538
DST-SLW-25120-DS20X20-J- New Ds20x20 2,460 90 SLW-25120 u Page 538
Assembly instructions u Page 368 DST-SLW-25120-DS20X50-J- New Ds20x50 1,976 90 SLW-25120 u Page 538
and u www.igus-asean.com/dryspin-assembly-instructions DST-SLW-25120-DS20X60-J- New Ds20x60 1,656 90 SLW-25120 u Page 538
DST-SLW-25120-DS20X80-J- New Ds20x80 1,703 90 SLW-25120 u Page 538
DST-SLW-25120-DS20X90-J- New Ds20x90 1,656 90 SLW-25120 u Page 538
SLW-25120-TR24X5-J- New Tr24x5 5,403 90 SLW-25120 u Page 538
Part number suffix LH for left-hand thread, RH for right-hand thread

ASEAN 09/2023 ASEAN 09/2023

472 Online tools and more information u www.igus-asean.com/lead-screw-technology 3D CAD files, prices and delivery time online u www.igus-asean.com/lead-screw-technology 473
