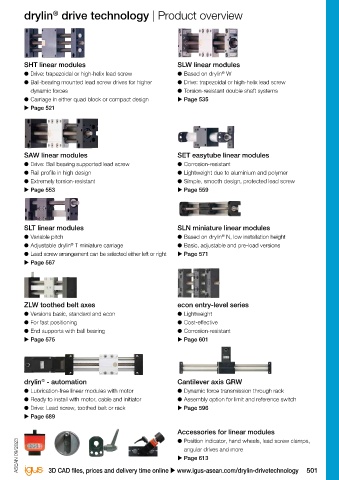

drylin drive technology | Linear modules drylin drive technology | Product overview
®
®

The drylin product portfolio provides lubrication-free linear modules that are driven either by a
®
trapezoidal thread, high helix thread or toothed belt. The user can choose a suitable individual solution
from lightweight solid plastic units up to heavy-duty stainless steel solutions. In all systems, the stroke
length is freely selectable and the drive given either via hand wheel or motor. SHT linear modules SLW linear modules
● Drive: trapezoidal or high-helix lead screw ● Based on drylin W
®
● Ball-bearing mounted lead screw drives for higher ● Drive: trapezoidal or high-helix lead screw
Linear modules with lead When to use it? dynamic forces ● Torsion-resistant double shaft systems
screw drive For format adjustments ● Carriage in either quad block or compact design u Page 535
Polymer bearings and lead screw ● In extreme environments u Page 521
nuts give lubrication-free operation ● When a cost-effective, ready-to-fit
3 shaft materials ● solution is required
8 trapezoidal thread pitches, When corrosion resistance is required
4 high helix thread pitches ● When a quiet operation is required
Body material made of stainless ● SAW linear modules SET easytube linear modules
steel, aluminium, zinc or polymer ● Drive: Ball bearing supported lead screw ● Corrosion-resistant
Lead screw machined to drawing ● Rail profile in high design ● Lightweight due to aluminium and polymer
or plain drive shaft When not to use it? ● Extremely torsion-resistant ● Simple, smooth design, protected lead screw
(lead screws made of steel, When high loads need to travel at highly u Page 553 u Page 559
stainless steel or aluminium) ●
dynamic forces
● When positioning accuracy <0.1mm is
Accessories available
required
● When high running performance is required in SLT linear modules SLN miniature linear modules
Standard min. 0°C continuous operation
®
Max. +60°C ● Variable pitch ● Based on drylin N, low installation height
®
Stainless steel version ● Adjustable drylin T miniature carriage ● Basic, adjustable and pre-load versions
®
with iglidur X ● Lead screw arrangement can be selected either left or right u Page 571
Min. 0°C u Page 567
Max. +180°C

toothed belt axes When to use it? ZLW toothed belt axes econ entry-level series
End supports with ball bearing ● Fast positioning of small loads ● Versions basic, standard and econ ● Lightweight
Lubrication-free linear guide with ● Quiet operation ● For fast positioning ● Cost-effective
polymer plain bearings ● Slim design ● End supports with ball bearing ● Corrosion-resistant
Various carriage lengths ● Underwater use with UW belt u Page 575 u Page 601
Polyurethane or neoprene toothed belts ● Cost-effective solution as basic version
Hard-anodised aluminium profile ● Continuous operation

drylin - automation Cantilever axis GRW
®
Standard min. 0°C When not to use it? ● Lubrication-free linear modules with motor ● Dynamic force transmission through rack
91)
Max. +60°C ● When high loads need to travel at highly ● Ready to install with motor, cable and initiator ● Assembly option for limit and reference switch
LT version min. –30°C dynamic forces ● Drive: Lead screw, toothed belt or rack u Page 596
Max. +60°C ● When positioning accuracy <0.1mm is u Page 689
91) Does not apply to required
accessories Accessories for linear modules
Position indicator, hand wheels, lead screw clamps,
ASEAN 09/2023 ASEAN 09/2023 u Page 613
●
angular drives and more

500 Online tools and more information u www.igus-asean.com/drylin-drivetechnology 3D CAD files, prices and delivery time online u www.igus-asean.com/drylin-drivetechnology 501
