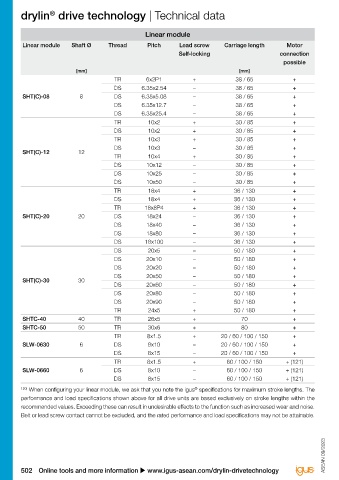

drylin drive technology | Technical data drylin drive technology | Technical data
®
®

Linear module Lead screw with plain bearing support 121) Ball bearing supported lead screws
Linear module Shaft Ø Thread Pitch Lead screw Carriage length Motor Max. Max. static, Max. static, Max. Max. Max. Max. static, Max. static, Max. Max.
Self-locking connection stroke axial load radial load speed feed stroke axial load radial load speed feed
possible length 120) capacity capacity rate length 120) capacity capacity rate
[mm] [mm] [mm] [N] [N] [rpm] [m/min] [mm] [N] [N] [rpm] [m/min]
TR 6x2P1 + 38 / 65 + 300 100 400 100 0.1 300 100 360 500 0.5
DS 6.35x2.54 – 38 / 65 + 300 100 360 100 0.254 300 100 360 1,000 2.54
SHT(C)-08 8 DS 6.35x5.08 – 38 / 65 + 300 70 280 100 0.508 300 70 280 1,000 5.08
DS 6.35x12.7 – 38 / 65 + 300 35 140 100 1.27 300 35 140 1,000 12.7
DS 6.35x25.4 – 38 / 65 + 300 18 72 100 2.54 300 18 72 1,000 25.4
TR 10x2 + 30 / 85 + 500 700 2,800 100 0.2 500 350 1,400 500 1.0
DS 10x2 + 30 / 85 + 500 700 2,800 100 0.2 500 500 2,000 1,000 2.0
TR 10x3 + 30 / 85 + 500 500 2,000 100 0.3 500 350 1,400 500 1.5
DS 10x3 – 30 / 85 + 500 500 2,000 100 0.2 500 500 2,000 1,000 3.0
SHT(C)-12 12
TR 10x4 + 30 / 85 + 500 400 1,600 100 0.4 500 350 1,400 500 2.0
DS 10x12 – 30 / 85 + 500 400 1,600 100 1.2 500 300 1,200 1,000 12.0
DS 10x25 – 30 / 85 + 500 250 1,000 100 2.5 500 250 1,000 1,000 25.0
DS 10x50 – 30 / 85 + 500 100 400 100 5.0 500 100 400 1,000 50.0
TR 18x4 + 36 / 130 + 900 1,600 6,400 100 0.4 900 1,000 4,000 500 2.0
DS 18x4 + 36 / 130 + 900 1,600 6,400 100 0.4 900 1,000 4,000 500 2.0
TR 18x8P4 + 36 / 130 + 900 1,200 4,800 100 0.4 900 1,200 4,800 500 2.0
SHT(C)-20 20 DS 18x24 – 36 / 130 + 900 800 3,200 100 2.4 900 800 3,200 1,000 24.0
DS 18x40 – 36 / 130 + 900 500 2,000 100 4.0 900 500 2,000 1,000 40.0
DS 18x80 – 36 / 130 + 900 250 1,000 100 8.0 900 250 1,000 900 72.0
DS 18x100 – 36 / 130 + 900 200 800 100 10.0 900 200 800 750 75.0
DS 20x5 – 50 / 180 + – – – – – 1,000 1,500 6,000 1,000 –
DS 20x10 – 50 / 180 + – – – – – 1,000 1,200 4,800 1,000 –
DS 20x20 – 50 / 180 + – – – – – 1,000 1,000 4,000 1,000 –
DS 20x50 – 50 / 180 + – – – – – 1,000 700 2,800 1,000 –
SHT(C)-30 30
DS 20x60 – 50 / 180 + – – – – – 1,000 600 2,400 1,000 –
DS 20x80 – 50 / 180 + – – – – – 1,000 400 1,600 1,000 –
DS 20x90 – 50 / 180 + – – – – – 1,000 300 1,200 1,000 –
TR 24x5 + 50 / 180 + 1,000 2,500 10,000 100 0.5 1,000 1,500 6,000 500 2.5
SHTC-40 40 TR 26x5 + 70 + 1,500 4,000 16,000 100 0.5 – – – – –
SHTC-50 50 TR 30x6 + 80 + 1,500 6,250 25,000 100 0.6 – – – – –
TR 8x1.5 + 20 / 60 / 100 / 150 + 300 100 400 100 0.15 300 100 400 500 0.75
SLW-0630 6 DS 8x10 – 20 / 60 / 100 / 150 + 300 100 400 100 1.0 300 100 400 1,000 10.0
DS 8x15 – 20 / 60 / 100 / 150 + 300 100 400 100 1.5 300 100 400 1,000 15.0
TR 8x1.5 + 60 / 100 / 150 + (121) 300 100 200 100 0.15 300 100 400 500 0.75
SLW-0660 6 DS 8x10 – 60 / 100 / 150 + (121) 300 100 400 100 1.0 300 100 400 1,000 10.0
DS 8x15 – 60 / 100 / 150 + (121) 300 100 400 100 1.5 300 100 400 1,000 15.0

®
120) When configuring your linear module, we ask that you note the igus specifications for maximum stroke lengths. The 121) Linear modules on plain bearings require an aluminium shaft end support when connected to a motor. The technical
performance and load specifications shown above for all drive units are based exclusively on stroke lengths within the values in the specifications are maximum values for each criterion, e.g. speed, stroke length etc.; they are not cumulative
recommended values. Exceeding these can result in undesirable effects to the function such as increased wear and noise. values. Suitability under consideration of the individual parameters for usage can be checked online at www.igus-asean.com/
Belt or lead screw contact cannot be excluded, and the rated performance and load specifications may not be attainable. linearmodule-finder.
