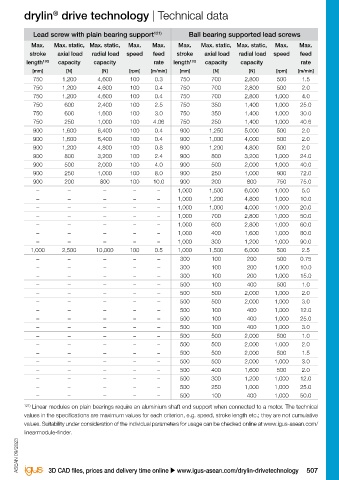

drylin drive technology | Technical data drylin drive technology | Technical data
®
®

Linear module Lead screw with plain bearing support 121) Ball bearing supported lead screws
Linear module Shaft Ø Thread Pitch Lead screw Carriage length Motor Max. Max. static, Max. static, Max. Max. Max. Max. static, Max. static, Max. Max.
Self-locking connection stroke axial load radial load speed feed stroke axial load radial load speed feed
possible length 120) capacity capacity rate length 120) capacity capacity rate
[mm] [mm] [mm] [N] [N] [rpm] [m/min] [mm] [N] [N] [rpm] [m/min]
TR 14x3 + 150 / 200 / 250 + 750 1,200 4,600 100 0.3 750 700 2,800 500 1.5
TR 14x4 + 150 / 200 / 250 + 750 1,200 4,600 100 0.4 750 700 2,800 500 2.0
DS 14x4 + 150 / 200 / 250 + 750 1,200 4,600 100 0.4 750 700 2,800 1,000 4.0
SLW-16120 16
DS 14x25 – 150 / 200 / 250 + 750 600 2,400 100 2.5 750 350 1,400 1,000 25.0
DS 14x30 – 150 / 200 / 250 + 750 600 1,600 100 3.0 750 350 1,400 1,000 30.0
DS 14x40.6 – 150 / 200 / 250 + 750 250 1,000 100 4.06 750 250 1,400 1,000 40.6
TR 18x4 + 45 / 150 / 200 / 250 + 900 1,600 6,400 100 0.4 900 1,250 5,000 500 2.0
DS 18x4 + 45 / 100 / 150 / 200 + 900 1,600 6,400 100 0.4 900 1,000 4,000 500 2.0
TR 18x8P4 + 45 / 150 / 200 / 250 + 900 1,200 4,800 100 0.8 900 1,200 4,800 500 2.0
SLW-2080 20 DS 18x24 – 45 / 150 / 200 / 250 + 900 800 3,200 100 2.4 900 800 3,200 1,000 24.0
DS 18x40 – 45 / 150 / 200 / 250 + 900 500 2,000 100 4.0 900 500 2,000 1,000 40.0
DS 18x80 – 45 / 150 / 200 / 250 + 900 250 1,000 100 8.0 900 250 1,000 900 72.0
DS 18x100 – 45 / 150 / 200 / 250 + 900 200 800 100 10.0 900 200 800 750 75.0
DS 20x5 – 150 / 200 / 250 + – – – – – 1,000 1,500 6,000 1,000 5.0
DS 20x10 – 150 / 200 / 250 + – – – – – 1,000 1,200 4,800 1,000 10.0
DS 20x20 – 150 / 200 / 250 + – – – – – 1,000 1,000 4,000 1,000 20.0
DS 20x50 – 150 / 200 / 250 + – – – – – 1,000 700 2,800 1,000 50.0
SLW-25120 25
DS 20x60 – 150 / 200 / 250 + – – – – – 1,000 600 2,800 1,000 60.0
DS 20x80 – 150 / 200 / 250 + – – – – – 1,000 400 1,600 1,000 80.0
DS 20x90 – 150 / 200 / 250 + – – – – – 1,000 300 1,200 1,000 90.0
TR 25x4 + 150 / 200 / 250 + 1,000 2,500 10,000 100 0.5 1,000 1,500 6,000 500 2.5
TR 8x1.5 + 50 / 60 / 100 + – – – – – 300 100 200 500 0.75
SAW-0630 6 DS 8x10 – 50 / 60 / 100 + – – – – – 300 100 200 1,000 10.0
DS 8x15 – 50 / 60 / 100 + – – – – – 300 100 200 1,000 15.0
TR 10x2 + 100 + – – – – – 500 100 400 500 1.0
DS 10x2 + 100 + – – – – – 500 500 2,000 1,000 2.0
DS 10x3 – 100 + – – – – – 500 500 2,000 1,000 3.0
SAW-0660 6
DS 10x12 – 100 + – – – – – 500 100 400 1,000 12.0
DS 10x25 – 100 + – – – – – 500 100 400 1,000 25.0
DS 10x50 – 100 + – – – – – 500 100 400 1,000 3.0
TR 10x2 + 69 / 100 / 150 + – – – – – 500 500 2,000 500 1.0
DS 10x2 + 69 / 100 / 150 + – – – – – 500 500 2,000 1,000 2.0
TR 10x3 + 69 / 100 / 150 + – – – – – 500 500 2,000 500 1.5
DS 10x3 – 69 / 100 / 150 + – – – – – 500 500 2,000 1,000 3.0
SAW-1040 10
TR 10x4 + 69 / 100 / 150 + – – – – – 500 400 1,600 500 2.0
DS 10x12 – 69 / 100 / 150 + – – – – – 500 300 1,200 1,000 12.0
DS 10x25 – 69 / 100 / 150 + – – – – – 500 250 1,000 1,000 25.0
DS 10x50 – 69 / 100 / 150 + – – – – – 500 100 400 1,000 50.0
®
120) When configuring your linear module, we ask that you note the igus specifications for maximum stroke lengths. The 121) Linear modules on plain bearings require an aluminium shaft end support when connected to a motor. The technical
performance and load specifications shown above for all drive units are based exclusively on stroke lengths within the values in the specifications are maximum values for each criterion, e.g. speed, stroke length etc.; they are not cumulative
recommended values. Exceeding these can result in undesirable effects to the function such as increased wear and noise. values. Suitability under consideration of the individual parameters for usage can be checked online at www.igus-asean.com/
Belt or lead screw contact cannot be excluded, and the rated performance and load specifications may not be attainable. linearmodule-finder.
