drylin drive technology | Design and calculation drylin drive technology | Design and calculation
®
®

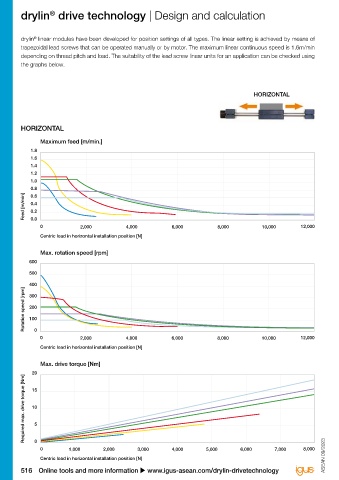

drylin linear modules have been developed for position settings of all types. The linear setting is achieved by means of The following trapezoidal lead screw drive sizes are used
®
trapezoidal lead screws that can be operated manually or by motor. The maximum linear continuous speed is 1.6m/min in SHT, SLW and SET linear modules:
depending on thread pitch and load. The suitability of the lead screw linear units for an application can be checked using Tr10x2: SHT-12, SHTC-12, SHTP-12, SLW-1040,
the graphs below. SLW-1080, SLW-1040-ES, SET-25
Tr14x4: SLW-1660
Tr18x4: SHT-20, SHTC-20, SLW-2080 VERTICAL
Tr24x5: SHT-30, SHTC-30, SLW-25120
HORIZONTAL
Tr26x5: SHTC-40
Tr30x6: SHTC-50
HORIZONTAL VERTICAL
Maximum feed [m/min.] Maximum feed [m/min.]
1.8 1.8
1.6 1.6
1.4 1.4
1.2 1.2
1.0 1.0
0.8 0.8
Feed [m/min] 0.4 Feed [m/min] 0.4
0.6
0.6
0.2
0.2
0.0
0 2,000 4,000 6,000 8,000 10,000 12,000 0.0 0 500 1,000 1,500 2,000 2,500 3,000
Centric load in horizontal installation position [N] Centric loads in a vertical installation position [N]
Max. rotation speed [rpm] Max. rotation speed [rpm]
600 600
500 500
400 400
Rotation speed [rpm] 200 Rotation speed [rpm] 200
300
300
100
100
0
0 2,000 4,000 6,000 8,000 10,000 12,000 0 0 500 1,000 1,500 2,000 2,500 3,000
Centric load in horizontal installation position [N] Centric loads in a vertical installation position [N]
Max. drive torque [Nm] Max. drive torque [Nm]
20 20
Required max. drive torque [Nm] 10 5 Required max. drive torque [Nm] 10 5
15
15
0
0 1,000 2,000 3,000 4,000 5,000 6,000 7,000 8,000 0 0 200 400 600 800 1,000 1,200 1,400 1,600 1,800 2,000
Centric load in horizontal installation position [N] ASEAN 09/2023 ASEAN 09/2023 Centric loads in a vertical installation position [N]
